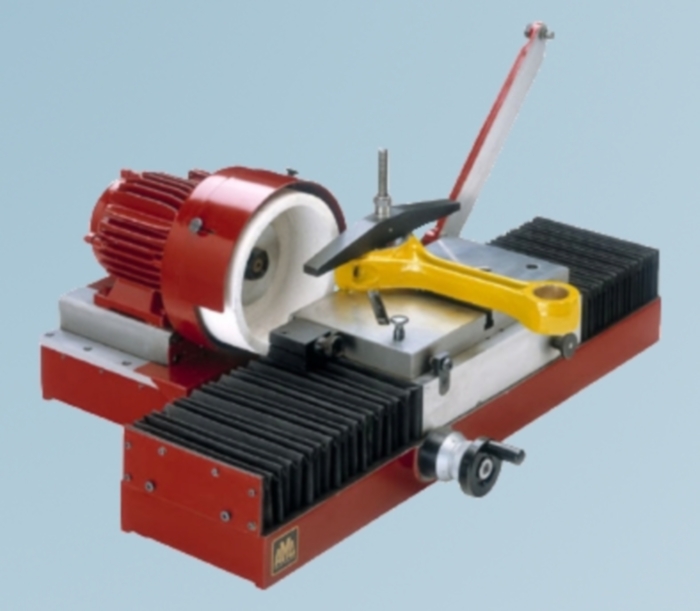

AMC-Schou CRG-100 Cap & Rod Grinding Machine

CRG-100 Cap & Rod Grinding Machine

The Amc-Schou CRG-100 is a natural partner to our Line Boring Machine L-2500V. It reduces the oversize diameter to undersize by grinding material off the matching faces of the rod and cap. Angle grinding is also possible. Improve the quality of your work on caps and rods with the CRG-100.

Stock #830New Machine; Call for Pricing

FEATURES

• Angle grinding allowed

• Easy grinding of caps with un-machined side faces

• Table with ball bearing guides for linear movement

• Setting-up device for clamping on original bore

• Pivotable set-up

• Setting-up table (both sides tiltable)

• Grinding wheel slide incl. lead screw and scale

• Setting-up device with clamping bar

SPECIFICATIONS

• Max. outside dimension of cap 10.83”
• Max. width of cap 3.94”
• Grinding wheel diameter 7"

MOTORS

• Grinding wheel motor 3/4 hp (2800 rpm)

DIMENSIONS

• Height of machine 12.2"
• Total length of machine 29.9"
• Total width of machine 21.7"
• Shipping weight (approx.) 264 lbs.
