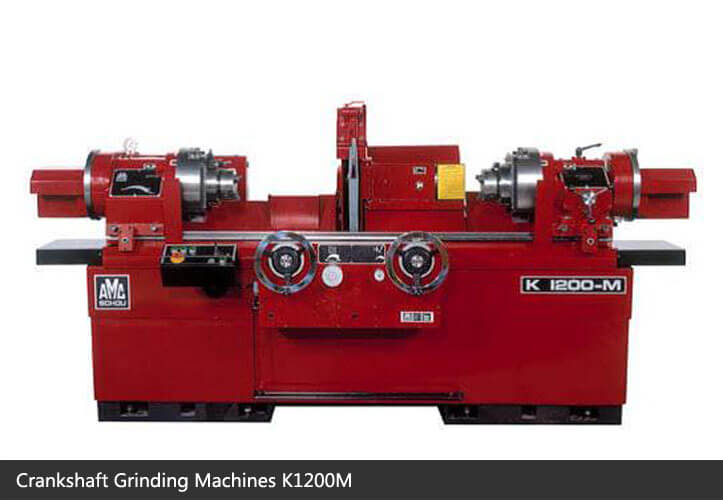

AMC-Schou K-1200U Crankshaft Grinder

Stock #1200New Machine; Call for Pricing

AMC-SCHOU crankshaft grinders are built to last with extra-strong castings to ensure stability and long life. All bearings are over-dimensioned to maximise reliability. Antifriction coating eliminates stick-slip effect. Fast and accurate setting-up is ensured by the face-plate system with integrated four-way adjustment. Variable 30° and 72° indexing with +/- 1° fine adjustment is standard. Maintenance free hardened ballscrews and nuts ensure backlash free stroke setting in seconds.

Standard Equipment: Universal chucks, set-up indicator, steady rest, crank centering V-gauge, radius dresser, front & side dresser, wheel balancing arbour, grinding wheel and hub, lifting hook, coolant system, splash guards, set of tools and operating manual.

Extra Equipment: Belt polisher, automatic sizing gauge, electronic in-process control, extra grinding wheels and hubs, hydraulic dresser, light weight and heavy-duty steady rests, inside counterweights, gauge for measuring crank sag, device for measuring length of stroke, axial journal control, device for control of throw setting, rear stop for grinding all diameters, auxiliary tool stand, automatic band filter, manual band filter, CE safety guards, increased swing from 690 mm (27") to 750 mm (29.5").

· Hydraulically operated wheel slide movement
· Hydraulically operated face-plate locking pins
· Infinitely variable table traverse (U-machines)
· Hydraulically operated tailstock (U-machines)
· SKF double tapered roller bearings in head- and tailstock
· Antifriction non-stick coating underneath table
· Maintenance free hardened ballscrews and nuts
· Rapid backlash-free stroke setting
· Standard oil cooler on hydraulic power station

K-Machines

Extra Equipment for Engine Rebuilding Machines

AMC-SCHOU delivers a wide selection of extra equipment for the K-Machines. These expansions make the everyday use of the machine faster and thereby more profitable.

Automatic Sizing Gauge
Automatic sizing gauge allows continuous control when grinding (can be used with steady rest).

CE Safety Guards
CE safety guards can be mounted on the head- and tailstock to offer protection against the rotating counterweights.

Throw-setting Device
A factory mounted throw-setting device is a must for V-crankshafts.

Specifications:

Size		K1200			K1500			K2000			K2700			K3700			K4000			K6000
Suffix option		U ☑	P ☑	C ☒	U ☑	P ☑	C ☑	U ☑	P ☑	C ☑	U ☑	P ☑	C ☑	U ☑	P ☑	C ☑	U ☒	P ☒	C ☒	U ☒	P ☒	C ☒
		CNC-HD☒			CNC-HD☒			CNC-HD☑			CNC-HD☒			CNC-HD☒			CNC-HD☑			CNC-HD☑
Max Dis between chucks	mm inch	1200 47.2			1625 64			2250 89			2750 108			4200 165.3			3500 138
Max Dis between centers	mm inch	1220 48			1600 63			2190 86			2750 108			4200 165.3
Swing Diameter	mm inch	460 18			690/750 27/29.5			690/750 27/29.5			690/750 27/29.5			750 29.5			1100 43
Max Stroke	mm inch	160 6.3			280 11			280 11			280 11			280 11			380 14.96
Steady Rest, Standard min capacity	mm inch	20 0.8			25 1			25 1			25 1			25 1
Steady Rest, Standard max capacity	mm inch	100 4			180 7			180 7			180 7			180 7
Max. workpiece diameter – new wheel	mm inch	410 16			600 23.5			600 23.5			600 23.5			600 23.5
Max. workpiece diameter with chucks	mm inch	155 6			190 7.5			250 10			250 10			275 10.8			380 15
Max. weight between chucks	kg lbs	400 880			1000 2200			1000 2200			1400 3080			1400 3080			2000
Workpiece rotate stepless	rpm	20-100			15-90			15-90			15-90			15-90			1-90
Table speed manually	mm/rev inch/rev	5 0.2			5 0.2			5 0.2			5 0.2			5 0.2
Table speed stepless	mm/min inch/min	5-4000 0-158			5-4000 0-158			5-4000 0-158			5-4000 0-158			5-4000 0-158			1-3000 0-118
Wheel slide rapid movement	mm/min inch/min	3000 118			3000 118			3000 118			3000 118			3000 118
Grinding wheel speed	rpm	940			760			760			760			760
Motor
Grinding wheel motor	kW hp	4.0 5.5			5.5 7.5			5.5 7.5			7.5 10			7.5 10			20
Workhead motor （hydralic motor for U only）	l/min gal/min	25 5.5			25 5.5			25 5.5			25 5.5			25 5.5
Hydraulic power pump ( U only)	kW hp	2.2 3			2.2 3			2.2 3			2.2 3			2.2 3
Coolant pump	kW hp	0.16 0.21			0.16 0.21			0.16 0.21			0.16 0.21			0.16 0.21
Dimension
Grinding wheel diameter	mm inch	660 26			813 32			813 32			813 32			813 32			1100 43
Min. grinding wheel width	mm inch	19 0.75			19 0.75			19 0.75			19 0.75			19 0.75
Max. grinding wheel width	mm inch	50 2			50 2			50 2			63.5 2.5			63.5 2.5
Height floor to spindle centre	mm inch	1120 44			1120 44			1120 44			1120 44			1180 46.5
Height of machine	mm inch	1475 58			1550 61			1550 61			1550 61			1610 63.4
Total length of machine	mm inch	2950 116.1			3700 145.6			4795 188.8			6000 237.2			9500 374
Total width of machine	mm inch	1750 68.9			2030 80			2030 80			2030 80			2030 80
Floor plan	mm inch	4220x1700 166.1x66.9			5405x2030 212.8x80			7045x2030 277.4x80			8850x2030 348.4x80			12500x2100 492.1x82.7
Net. weight approx.	kg lbs	3300 7260			4800 10560			5600 12320			6700 14740			7900 17380
Shipping weight approx. (wooden box)	kg lbs	3850 8470			5560 12232			6600 14520			7800 17160			9200 20240
Shipping volume	m³ ft³	11.1 391.9			14.6 515.5			18.7 660.3			23.3 822.7			33,5 1182.9

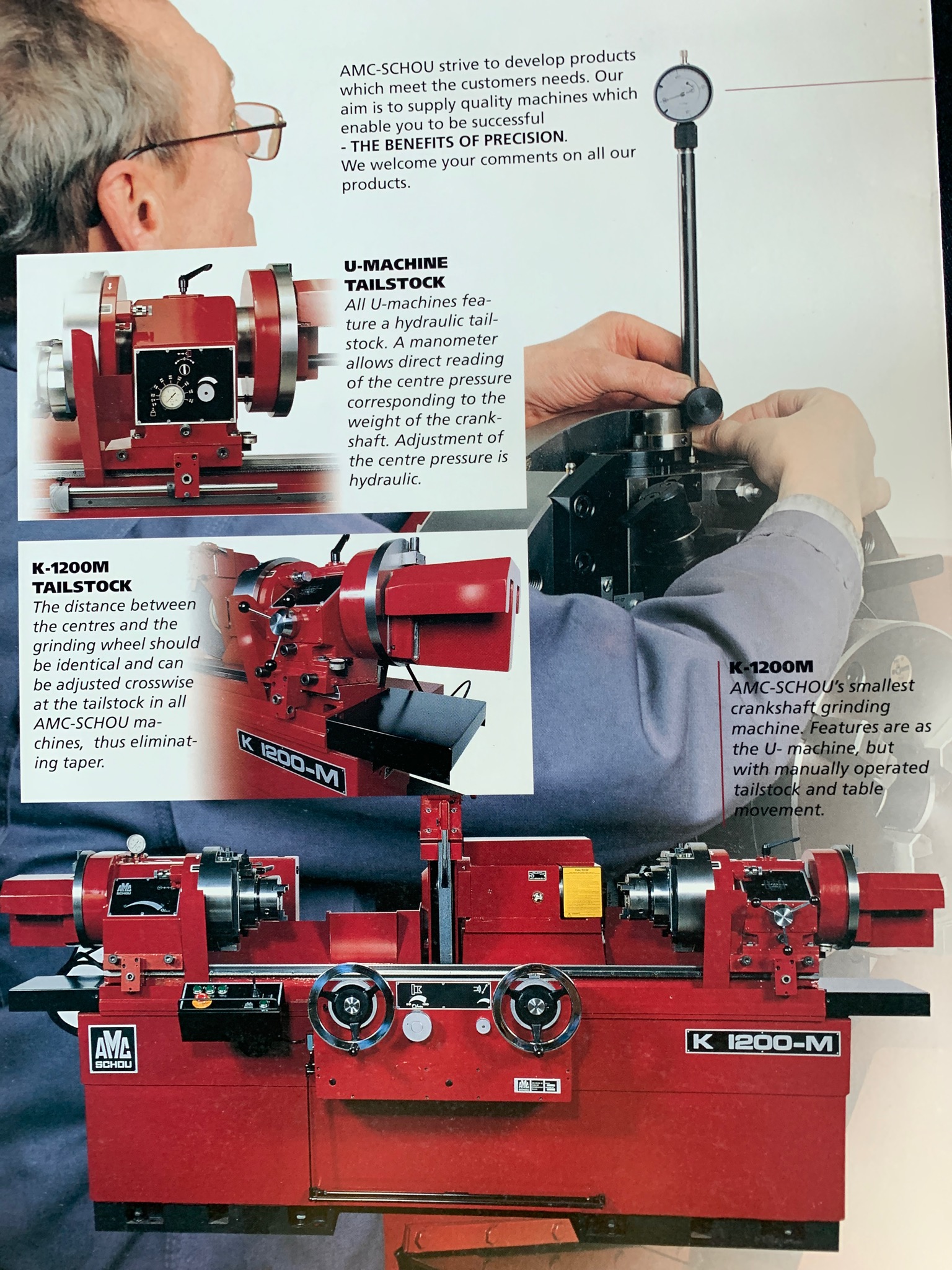

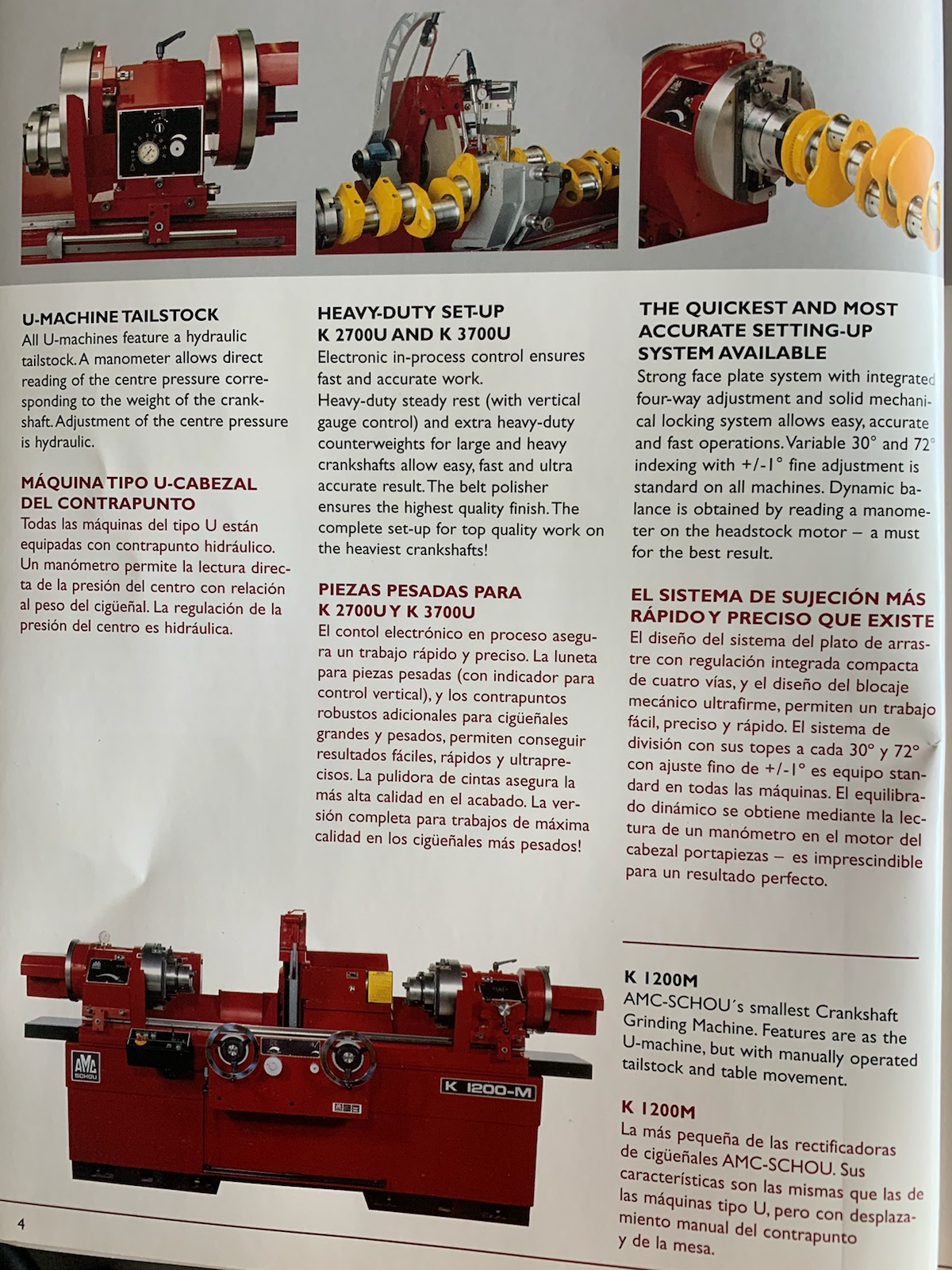

BROCHURE
