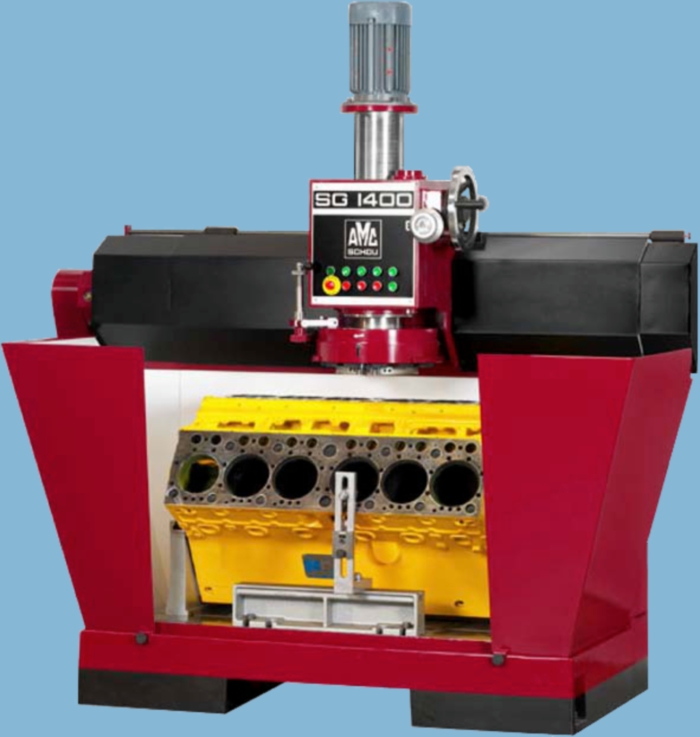

AMC-Schou SG-1400V Surface Grinding Machine
The Amc-Schou Surface Grinding Machine Model SG-1400V is a medium size wet grinding machine which with its sturdy and well proportioned design, offers a lot of advantages within small and medium size engine reconditioning as well as industrial grinding. The special design of the guide ways combined with the efficient central lubrication and the telescopic guards ensures a top quality grinding result for many years to come. The fact that the stability of the machine is constant regardless of the height of the item to be ground assures optimum stock removal and grinding result. The variable grinding wheel speed and feed allows the user to grind and mill many different kind of materials, using different cutting tools and grinding stones, at different speeds and feeds.
FEATURES
• Grinding Wheel Dresser
• Cylinder Head Setting-Up Fixture
• Alignment and Depth Control Device
• Top Guideway and Central Lubrication
• Milling Attachment for Aluminum Heads
SPECIFICATIONS
• Max. grinding length 55.1 inch
• Max. grinding width 13.4 inch
• Max. height of work piece 33.5 inch
• Table surface 55.1 x 23.6 inch
• Grinding wheel diameter 13.8 inch
• Numbers of segments on grinding wheel 12 pcs
• Fine feed of wheelhead per graduation 0.0005 inch
• Wheelhead traverse speeds, stepless 0-118.1 inch/min
• Grinding wheel head rpm, stepless 0-1425 rpm
• Capacity of coolant tank 24.7 gal
MOTORS
• Grinding wheel motor 5.36 hp
• Grinding wheel traverse motor 1 hp
• Coolant pump 0.21 hp
DIMENSIONS
• Height of machine 88.9 inch
• Total length of machine 90.2 inch
• Total width of machine 45.7 inch
• Working space required 118.1x61.4 inch
• Machine weight approx. 4,158 lbs
