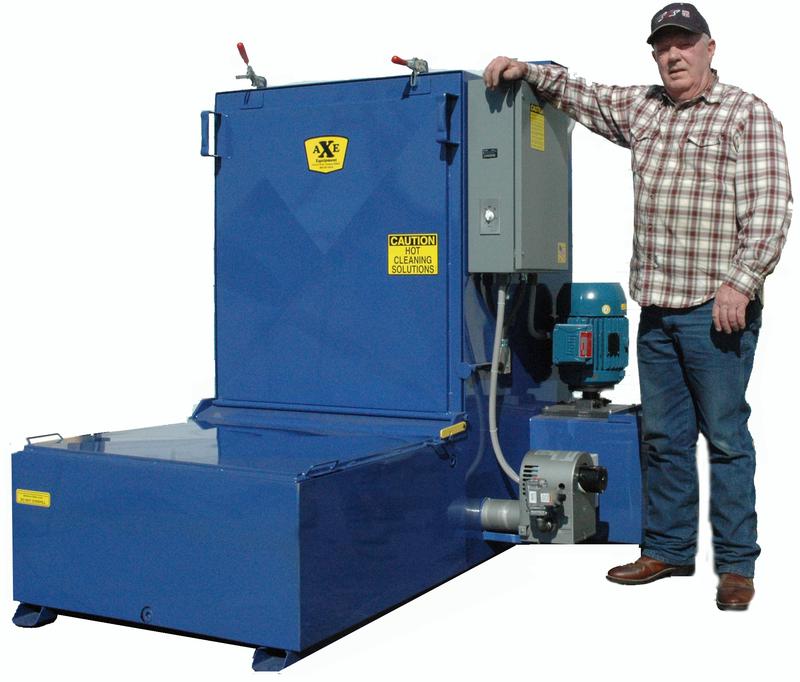

Axe SW-2832-R Spray Washer

WORK CAPACITY

• Height: 32"

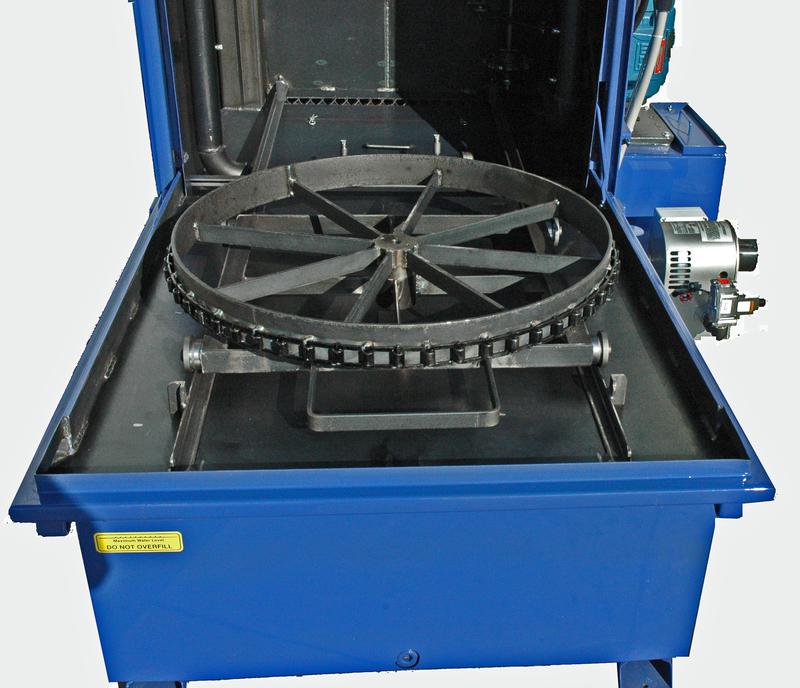

• Turntable Diameter: 28"
• Load Weight: 500 lbs

CLEANING SYSTEM

• Solution Capacity: 110 gals.
• Pump Motor: 7.5 HP
• Pump Output: 75 psi @ 100 gpm

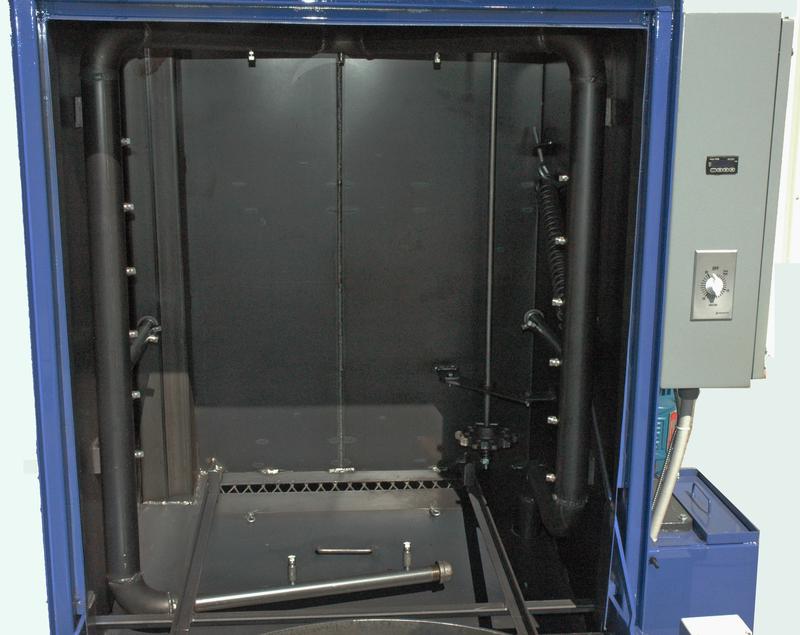

• Spray Nozzles: 20 alternating
• Filter Screen: 1200 sq"

HEAT SOURCE

• Electric Element: 12 kw
• Gas Burner: 100,00 BTU

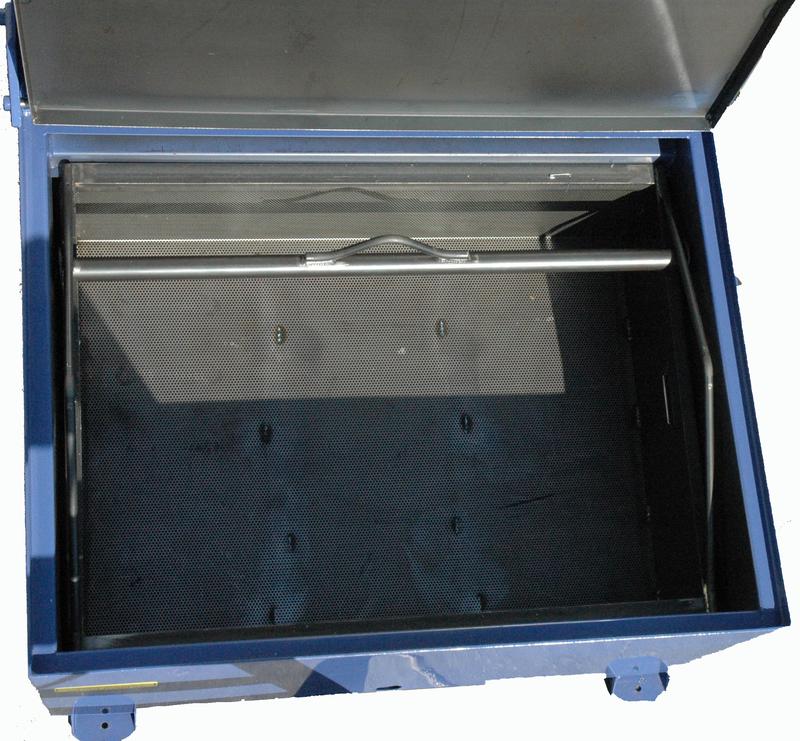

HOT TANK BASKETS

• Width (I.D.): 13"
• Length (I.D.): 34"
• Depth (I.D.): 11"

CONNECTIONS

• Electric Element: 12 KW
• Pump Motor: 3 phase, 208/230/460 Volts
• Electric Heat: 3 phase

CABINET CONSTRUCTION

• Gauge Steel: 12 gauge
• Insulation: 1" fiberglass
• Steam Vent: 6"
• Gas Vent: 4"

FLOOR SPACE REQUIRED

• Height: 66"
• Width: 57"
• Length (door open): 80"
• Length (door closed): 60"
• Turntable Height (above floor): 27"

MACHINE WEIGHT

• Shipping Weight: 1,500 lbs.
