Axe SW-40E-HT Spray Washer

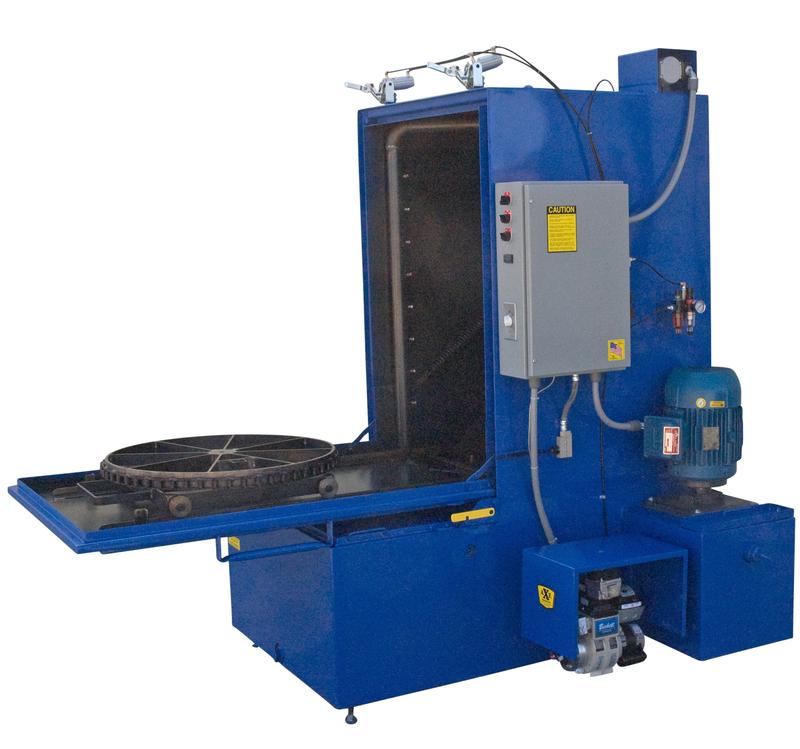

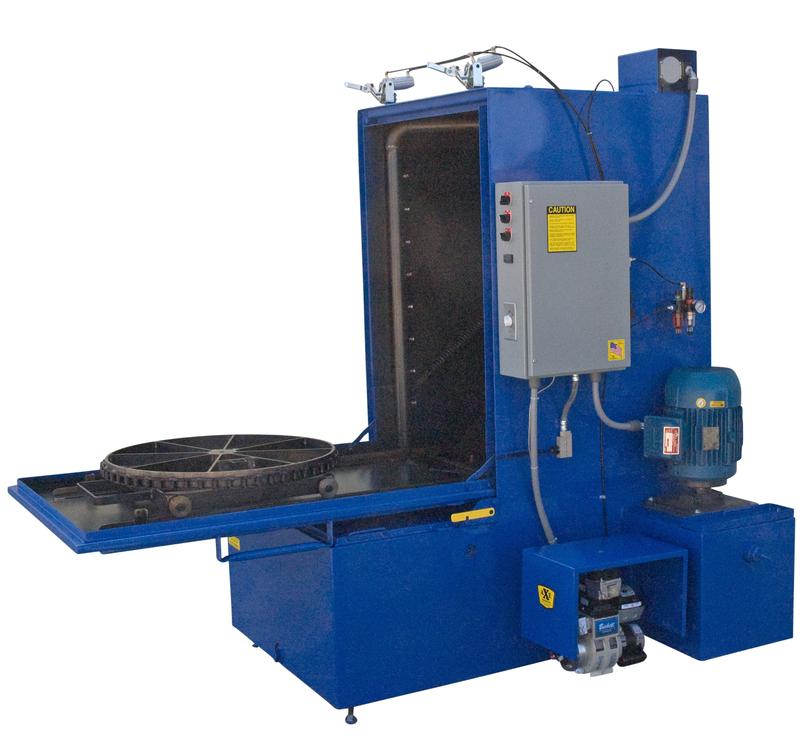

The Dominator (SW-40) Combination Spraywasher/Hot Tank

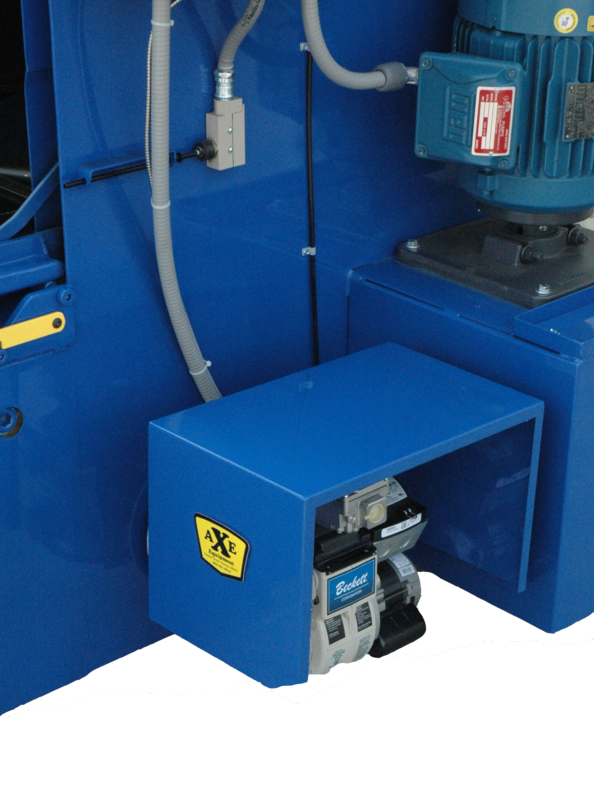

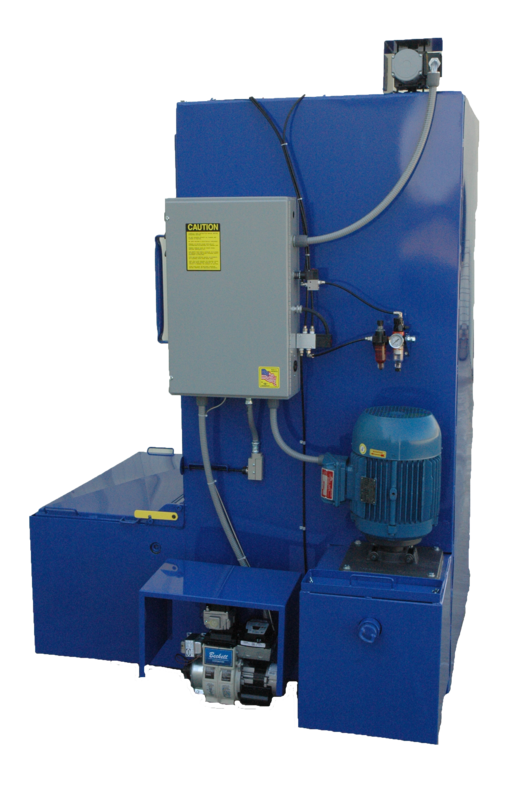

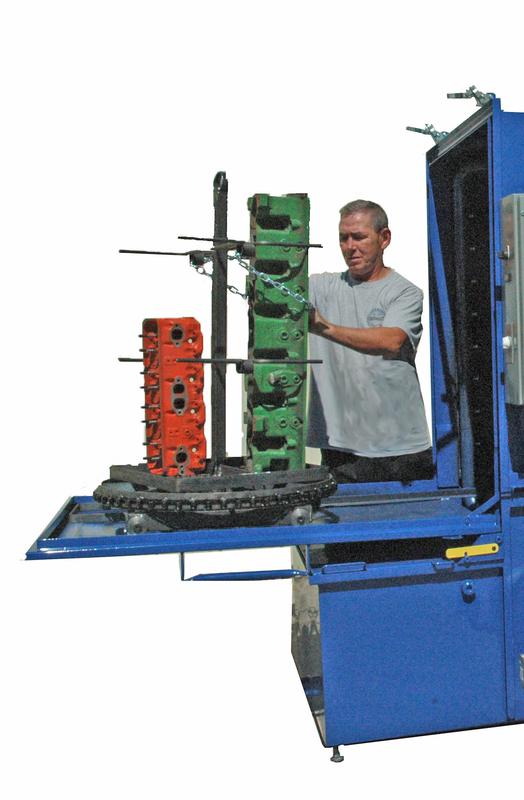

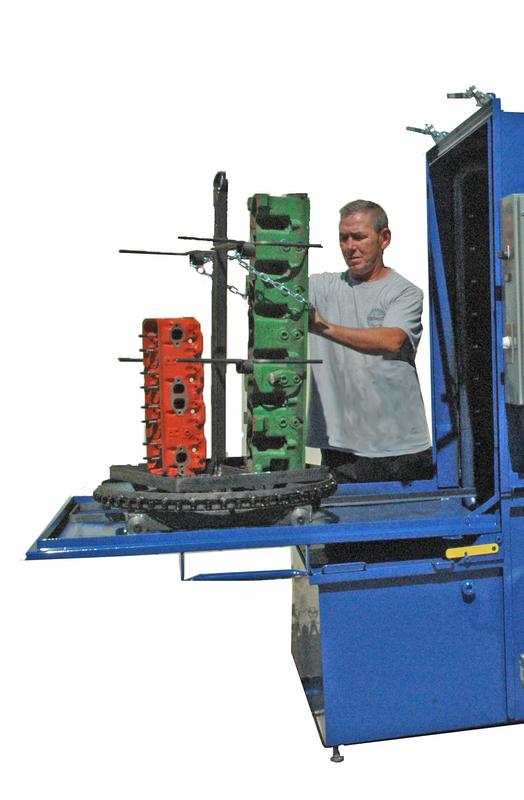

The Dominator model comes with a wide 28" diameter turntable that holds up to 1,000 pounds and has a full 40" vertical height inside clearance. The spring assisted lay down door on the dominator can handle the tough loads such as the big detriot series blocks. This fully insulated cabinet is powered by a 7.5 hp motor and can be heated by gas or electric. 3 different hot tank sizes are available.
WORK CAPACITY
• Height: 40"
• Turntable Diameter: 28"
• Load Weight: 1,000 lbs

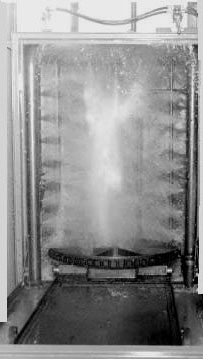

CLEANING SYSTEM
• Solution Capacity: 130 gals.
• Pump Motor: 7.5 HP
• Pump Output: 75 psi@100 gpm
• Turntable Motor: 1/4 HP @ 2.5 rpm

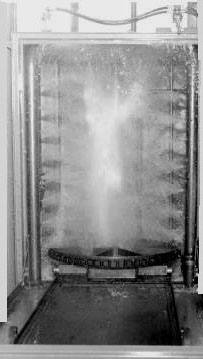

• Spray Nozzles: 21 alternating
• Rinse Nozzles: 5
• Filter Screen: 1450 sq"

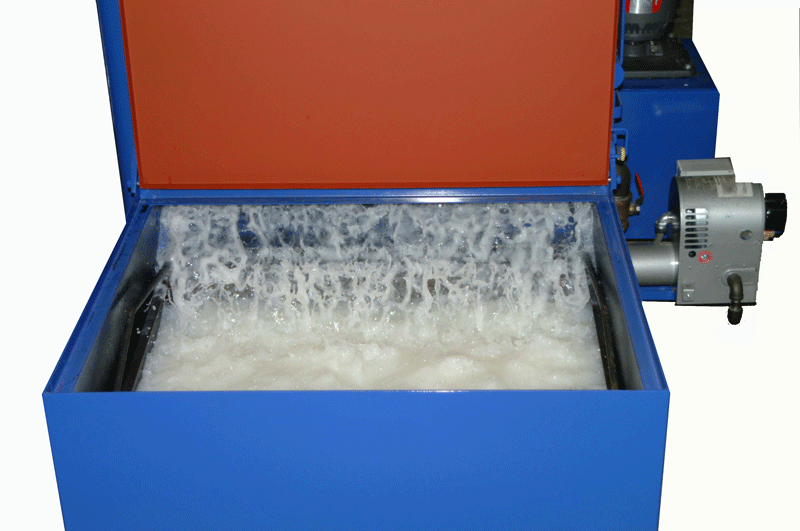

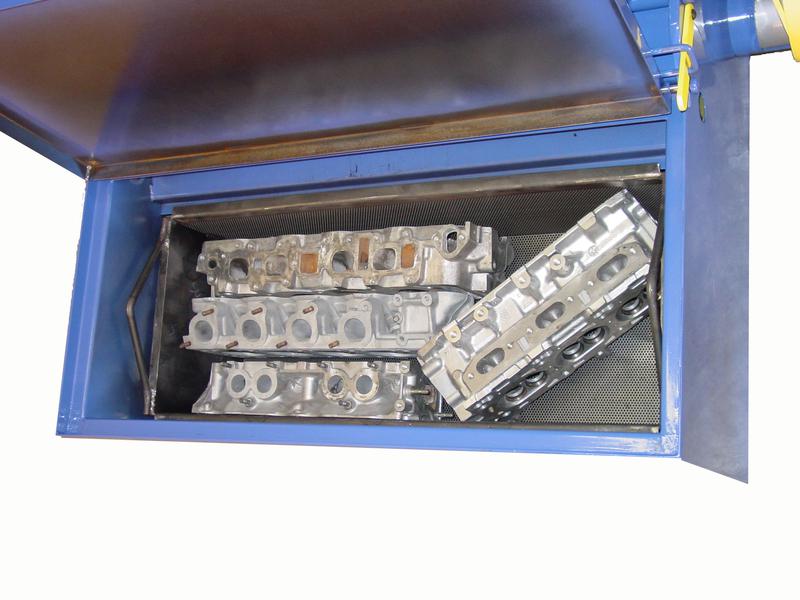

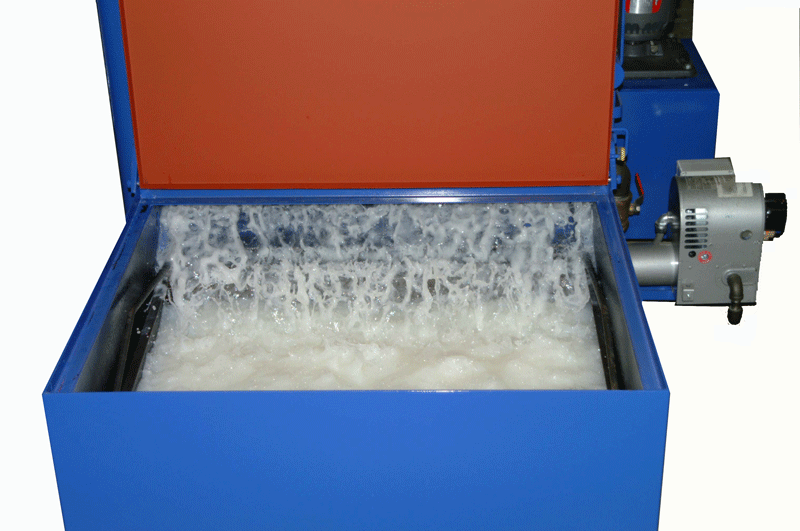

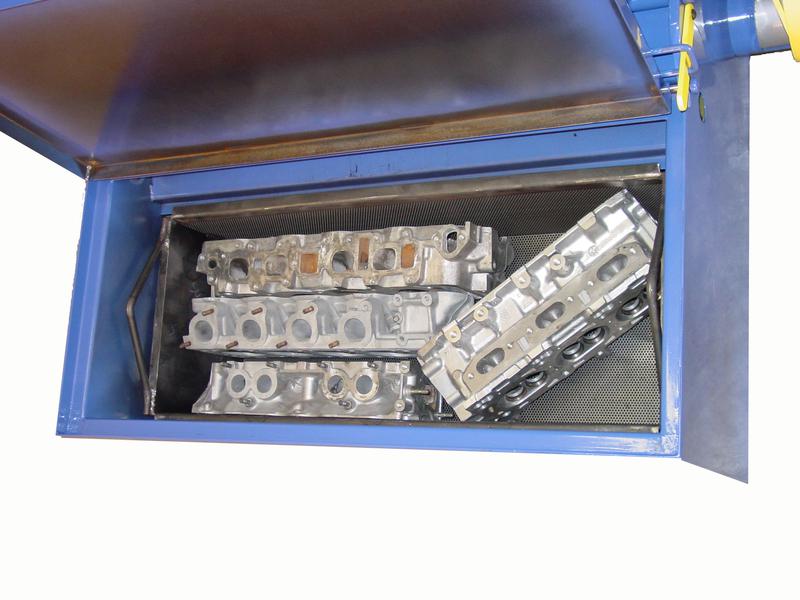

HOT TANK BASKETS
• Width (I.D.): 21"
• Length (I.D.):34"
• Depth (I.D.): 11"
CONNECTIONS
• Electric Element: 12KW
• Pump Motor: 3 phase, 208/230/460 volts
• Electric Heat: 3 phase
CABINET CONSTRUCTION
• Gauge steel: 12
• Insulation: 1" fiberglass
• Steam Vent: 6"
FLOOR SPACE REQUIRED
• Height: 81"
• Width: 57"
• Length (door open): 86"
• Length (door closed): 57"
• Turntable Height (above floor): 30"
MACHINE WEIGHT
• Shipping Weight: 2,100 lbs
