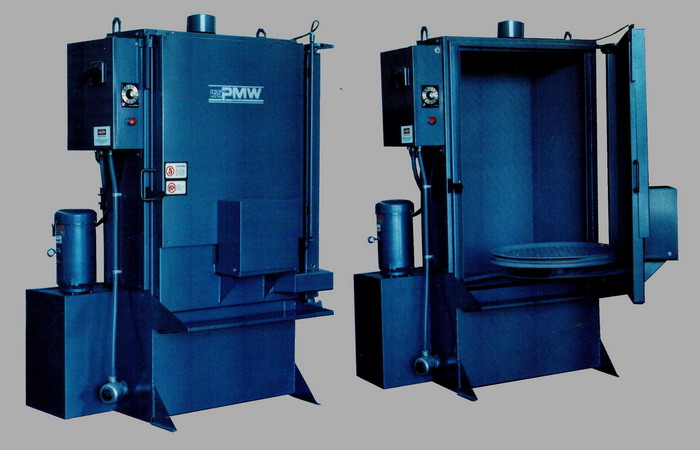

PMW 412 Power Spray Washer

SPECIFICATIONS

• Over-all height 78"
• Over-all width 60"
• Over-all depth 41"
• Turntable diameter 26"
• Working height 40"
• Turntable load limit 800 lbs.
• Solution capacity 70 gal.
• Nozzle orifice 3/16"
• Pump motor 7-1/2 HP, 230 V, 3 Phase Power
• Turntable motor 1/15 HP
• Pump capacity 100 GPM at 65 psi
• Electric heater 12 Kw
• Drain size 1-1/2"
• Vent size 6"
• Parts basket 5 cu. ft.
• Soak tank basket 4.25 cu. ft.
• Gas heat 60,000 OR 120,000 btu
• Approx. weight 1,500 lbs.
• Stainless steel thermometer
• Stainless steel wash nozzles
