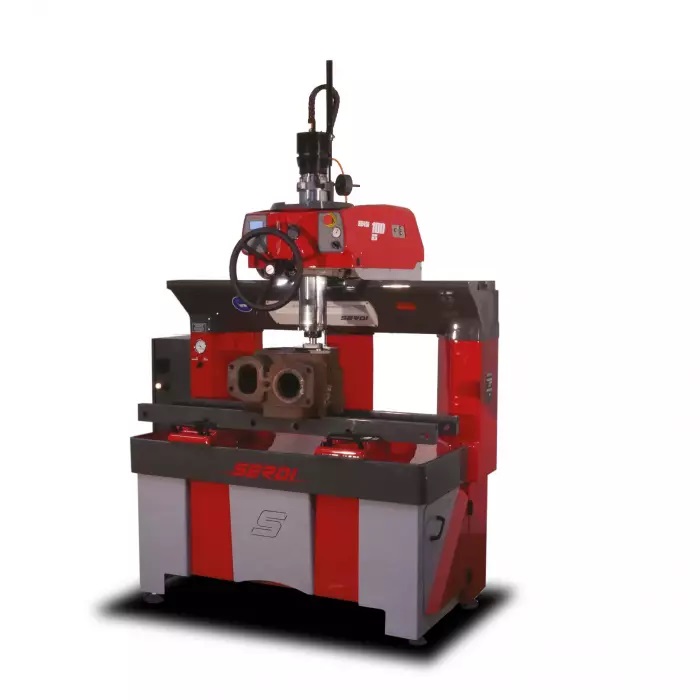

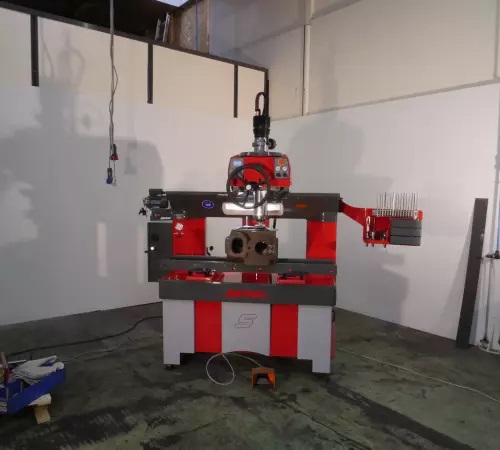

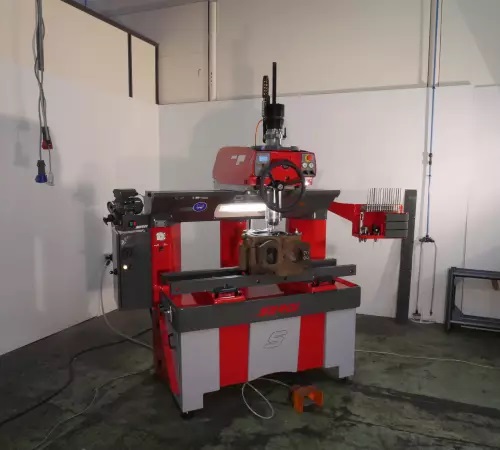

Serdi 100 ES Value Guide and Seat Cutting Machine
Machining process Form tool
Operating Manual Power 3 kW
Centering technology Double air cushion
Valve seat capacity 28 to 120 mm / 1.1" to 4.72"
Spindle speed 80 to 840 rpm
Heavy duty
Marine
Stationary engine
Machine designed on the working principle of the double air-float patented centering system, with a built-in motor spindle delivering massive torque, a very high rigidity machining head and frame, being able to carry very heavy cylinder heads.
Standard Equipment:
DOUBLE AIR CUSHION CENTERING
The centering is made by association of a spindle floating on a spherical air cushion and a rigid light weight aluminium head plate floating on a plane air cushion. It does automatically align each valve guide regardless of any misalignment or angular deflection thanks to live pilot technology.
FIXTURE TABLE
Air floating tables, cylinder heads up to 350 kgs can be moved back and forth without any effort and then locked by two powerful pneumatic jacks.
CONTROL PANELS
Spindle control buttons located just behind the handwheel to change with ease the spindle speed rotation, switch spindle direction or reset the depth control measurement. Digital depth control accurate until 0.0004 in (0.01 mm). Displayed in inch or millimeter Two switch buttons to fastly activate both sphere and cylinder cushions, or lock them. Large handwheel for a better control of machining depth.
INTEGRATED VACUUM TESTER
Graduated vacuum tester from 0 to -1 bar, linked to a vacuum generator on one end and to a foam pad on the other, in order to make a fast valve sealing check with the valve mounted on the valve seat, before disassembling the cylinder head from the machine.
LED LIGHTNING
The machine frame is equiped with LED lightning for an increased light ratio and a better energy saving.
CONTINUOUS SPINDLE SPEED VARIATION
This function allows the spindle speed a permanent oscillation around the nominal speed, in order to snap machining shattering when the cutting profile is too large.

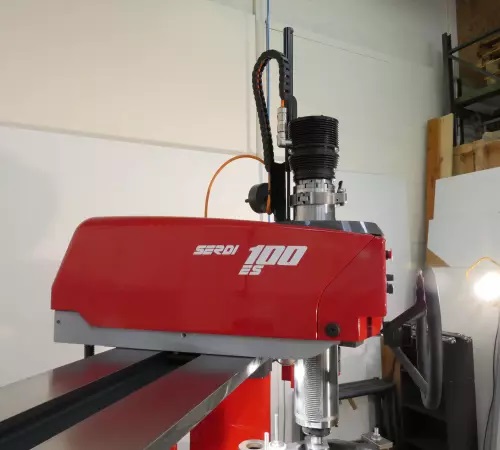

3 KW BUILT-IN MOTOR SPINDLE
A massive 3 KW (4 HP) built-in motor-spindle with maximum torque from 40 to 385 rpm and a maximum speed of 840 rpm. Stator cooled by heat sink and fan. Rigid heavy duty motor-spindle of 4.5’’ (116 mm) diameter welcoming a motor coupled to a planetary gearbox for a powerful machining without chatter. Get the best machining accuracy thanks to a high precision tooth rack and a whole spindle assembly rigid and concentric to the valve guide.
Technical Specifications:
SPACE REQUIREMENT
Depth : 1150 mm - 45.3"
Height : 2500 mm - 98.42"
Net weight approx. : 1500 Kg - 3306 lbs
Width : 2000 mm - 78.74"
HEAD STROKE
Lenghtwise : 1000 mm - 39.37"
Crosswise : 44 mm - 1.73"
MAXIMUM CYLINDER HEAD SIZE
Length (on parallels with standard 190 mm pilot) : unlimited
Heigth (on parallels with standard 190 mm pilot) : 360 mm - 14.2"
Width (on parallels with standard 190 mm pilot) : 500 mm - 19.7"
SPINDLE
Spindle sleeve diameter : 116 mm - 4.5"
Spindle speed : 80 to 840 rpm
Maximum torque : 110 Nm
Spindle travel : 345 mm - 13.58"
Angular stroke : 5°
Power : 3 kW
MACHINING CAPACITY
Valve seat capacity : 28 to 120 mm / 1.1" to 4.72"
CONNECTIONS
Electric power supply : 4kVA 230V AC-lPh-50/60 Hz
Pneumatic air supply : 6 bars
Maximum air flow : 400 l/min - 15 CFM
Noise level at 400 rpm : 72 Dba
Noise level at 840 rpm : 82 Dba
TABLE STROKE
Table travel : 160 mm - 6.3"
Optional Accessories:
360° ROLLOVER FIXTURE
TOOL ADJUSTING DEVICE
SERDI 4200

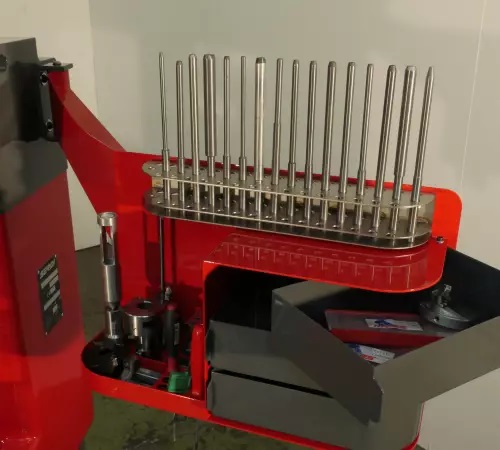

TOOLRACK
