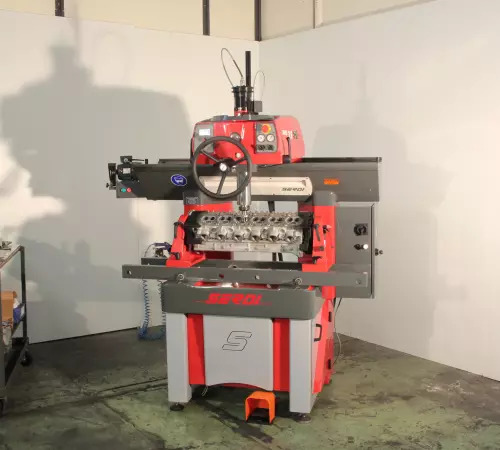

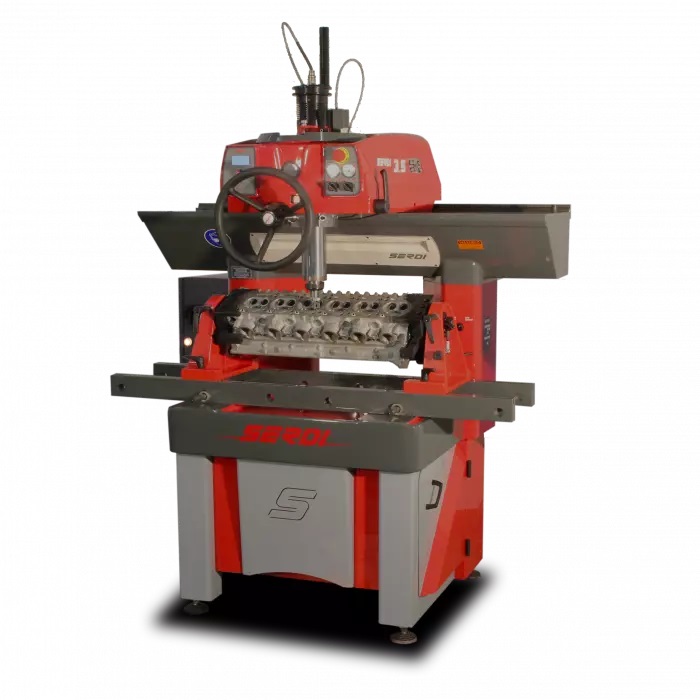

Serdi 3.5 Valve Guide and Seat Cutting Machine

3.5 Valve Guide and Seat Cutting Machine

Stock #1194New Machine; Call for Pricing

Previous Slide Next Slide

Machining process form tool

Operating Manual

Power1.5 kW

Centering technology - Triple air cushion

Valve seat capacity16 to 70 mm / 0.6'' to 2.75''

Spindle speed 100 to 1200 rpm

Automotive Motorcycle Racing

High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads.

Workhead with triple air-float centering system and built-in spindle motor. Perfect machine for the most demanded motorcycle and automotive multi-valve cylinder heads. Achieves excellent levels of concentricity even in guide sizes as small as 3 mm/0.12”.

TECHNICAL BROCHURE

STANDARD EQUIPMENT

1.5 KW BUILT-IN MOTOR SPINDLE

Built-in motor spindle paired with a 1.5 kW Siemens variable frequency drive, with a maximum torque from 100 to 670 rpm and a maximum speed of 1200 rpm. Stator cooled by heat sink. Rigid heavy duty motorspindle of 80 mm (3.15") diameter for machining without chatter. Ensure a considerable machining accuracy thanks to a high precision tooth rack and a whole spindle assembly rigid and concentric to the valve guide.

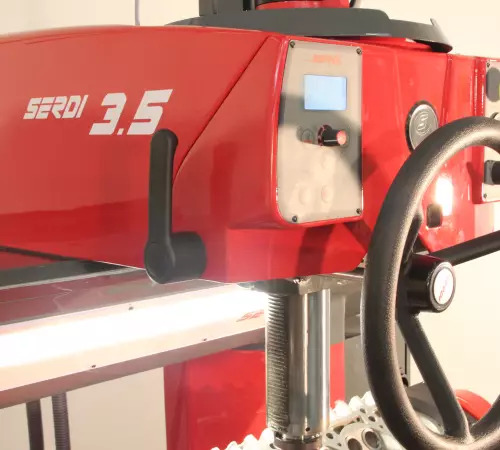

CONTROL PANELS

Spindle control buttons located just behind the handwheel to change with ease the spindle speed rotation, switch spindle direction or reset the depth control measurement. Digital depth control accurate until 0.0004 in (0.01 mm). Displayed in inch or millimeter Two switch buttons to fastly activate both sphere and cylinder cushions, or lock them. Large handwheel for a better control of machining depth.

TRIPLE AIR CUSHION CENTERING

Our triple air cushion and built-in motor spindle decreases dramatically the free floating parts weight during centering which improves speed and accuracy. It does automatically align each valve guide regardless of any misalignment or angular deflection thanks to live pilot technology.

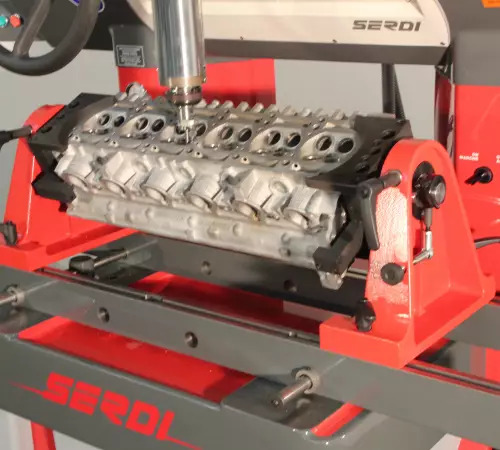

CLAMPING FIXTURE

The machine is supplied with a clamping system allowing to setup and clamp cylinder heads with both vertical and inclined valve guides. Several types of spacers or clamping bars are supplied to adapt the most common cylinder heads. The cradle can tilt from +42° to -15° from vertical.

LED LIGHTNING

The machine frame is equiped with LED lightning for an increased light ratio and a better energy saving.

INTEGRATED VACUUM TESTER

Graduated vacuum tester from 0 to -1 bar, linked to a vacuum generator on one end and to a foam pad on the other, in order to make a fast valve sealing check with the valve mounted on the valve seat, before disassembling the cylinder head from the machine.

CONTINUOUS SPINDLE SPEED VARIATION

This function allows the spindle speed a permanent oscillation around the nominal speed, in order to snap machining shattering when the cutting profile is too large.

TECHNICAL SPECIFICATIONS

MACHINE DIMENSIONS

Length : 1690 mm - 66.54"

Width : 1050 mm - 41,3"

Height : 2170 mm - 85.43"

Net weight approx. : 1085 Kg - 2392 lbs

HEAD STROKE

Lenghtwise : 930 mm - 36.61"

Crosswise : 50 mm - 1.96"

Centering plane air cushion travel : 14 mm - 0.55"

MAXIMUM CYLINDER HEAD SIZE

Length (on parallels with standard 190 mm pilot) : unlimited

Width (on parallels with standard 190 mm pilot) : 500 mm - 19.7"

Heigth (on parallels with standard 190 mm pilot) : 330 mm - 13"

Width (single or dual axis rollover fixture) : 300 mm - 11.81"

Heigth (single or dual axis rollover fixture) : 190 mm - 7.48"

Length (single or dual axis rollover fixture) : 1050 mm - 41.3"

SPINDLE

Spindle sleeve diameter : 80 mm - 3.15"

Spindle speed : 100 to 1200 rpm

Travel : 240 mm - 9.45"

Spindle motorization power : 1.5 kW

Angular stroke : 5°

MACHINING CAPACITY

Valve seat capacity : 16 to 70 mm / 0.6'' to 2.75''

CONNECTIONS

Electric power supply : 2.5kVA-230V-AC-1Ph-50/60 Hz

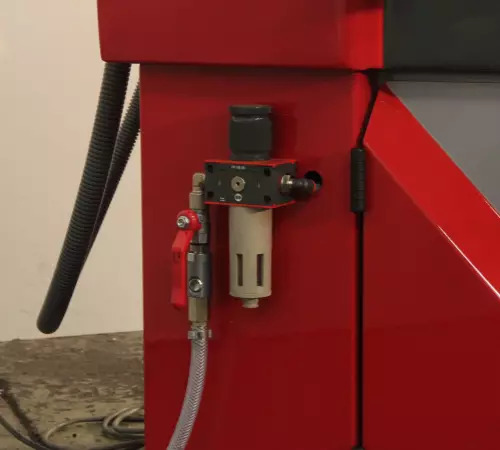

Pneumatic air supply : 6 bars

Maximum air flow : 400 l/min - 15 CFM

Noise level at 400 rpm : 72 Dba

Noise level at 1200 rpm : 82 Dba
