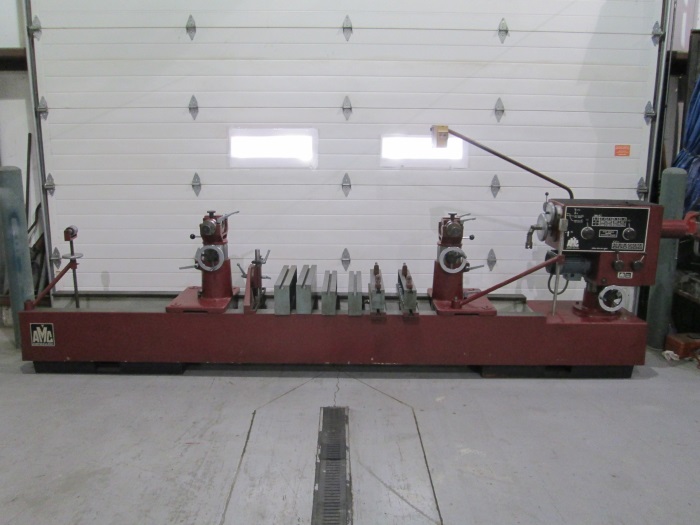

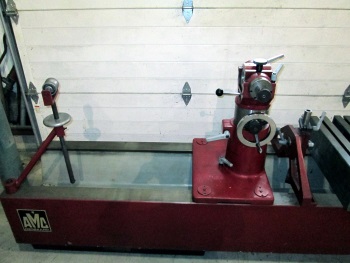

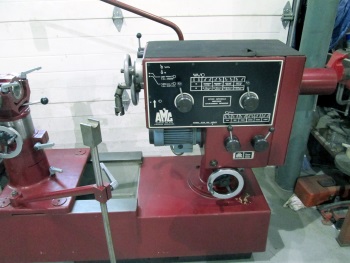

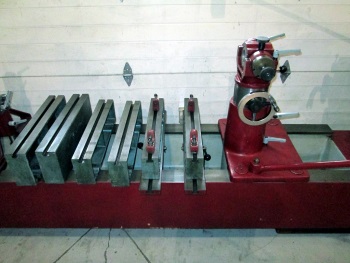

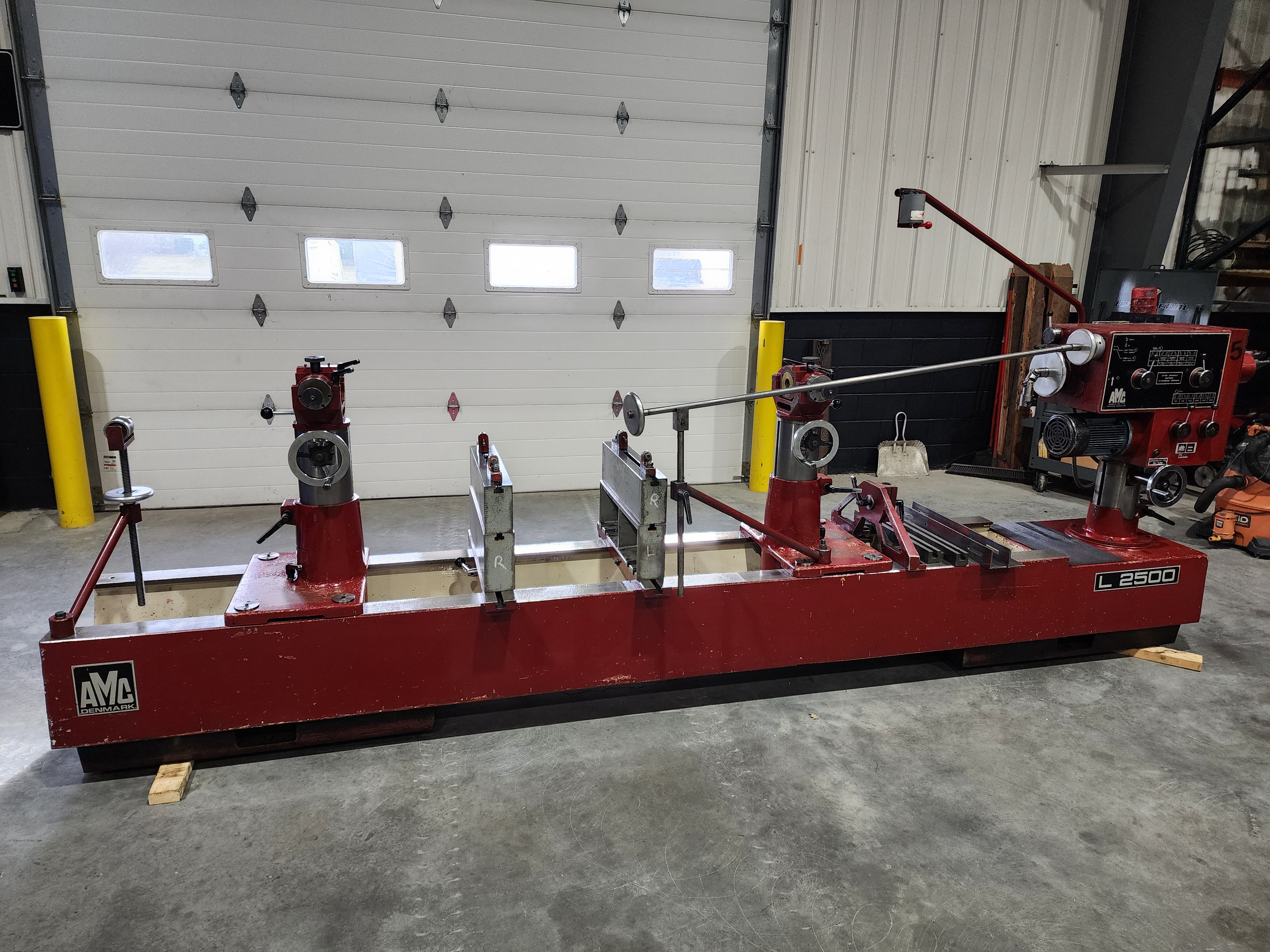

Amc L-2500 Line Boring Machine
SPECIFICATIONS
• Max. block length: 2540mm (100")
• Distance from built-in parallels to boring bar max.: 850mm (34")
• Spindle speeds RPM: 50, 85,150, 250, 425, 750
• Feed per revolution (roughing): 0.15mm (0.06")
• Feed per revolution (finishing): 0.03mm (0.0012")
• Max. boring bar travel: 325mm (12.75")
• Total travel with extension bar: 590mm (23.25") • Drive motor: 1.5 HP (1.1 kW)
• Length of machine: 4550mm (14.11")
• Width of machine: 760mm (29.9")
• Max. height of machine: 2200mm (86.6")
• Work space required: 7050 x 760mm (277.6" x 29.9")
• Weight: 2700 kg (5,950 Lbs.)
• Serial Number: 510
Includes:

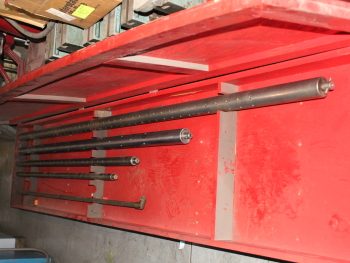

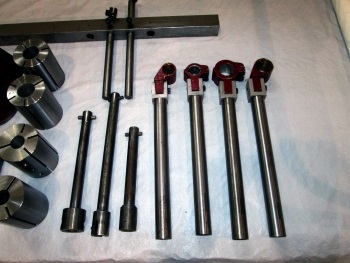

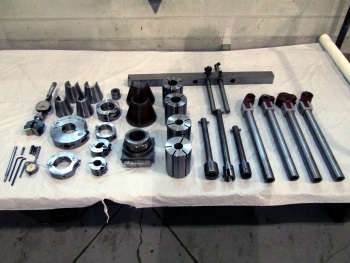

30 mm bar kit, 40 mm bar kit, 60 mm bar kit, Tool setting micrometer, Centering indicator set, (Tooling per photo)
