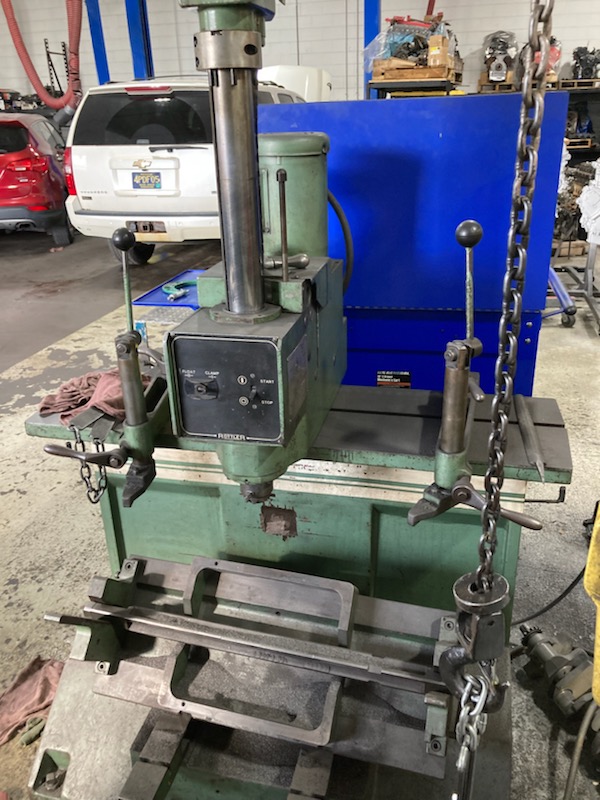

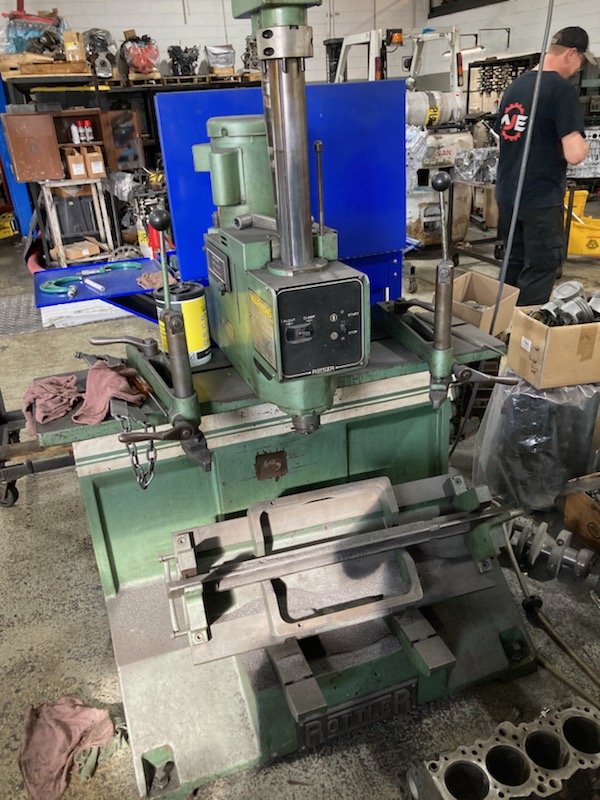

Rottler F2MB Boring Machine

Specifications

Bore Capacity Standard: 2-7/8 to 5"

Bore Capacity Optional: 1-1/2 to 8"

Spindle Speed: 200 and 400 RPM

Feed per Revolution: .0055" (.140mm)

Spindle Travel Vertical: 14" (356mm)

Spindle Travel Horizontal: 36.5" (927mm)

Cutterhead to Parallels : 18.5" (470mm)

Overall Width of Machine Base: 44.5" (1130mm)

Overall Width of Machine: 50.5" (1282mm)

Overall Height of Machine: 74.5" (1892mm)

Overall Depth of Machine: 51" (1296mm)

Cutterhead to Machine Base: 21" (533mm)

Depth Capacity: 9.75" (248mm)

Depth to Recess: 10.75 (273mm)

Air Requirments: 1 cfm @ 90 to 100 PSI

Spindle Motor Drive: 1 HP 230V/ Single phase/ 60 cycle

Shipping Weight: 2500 lbs
