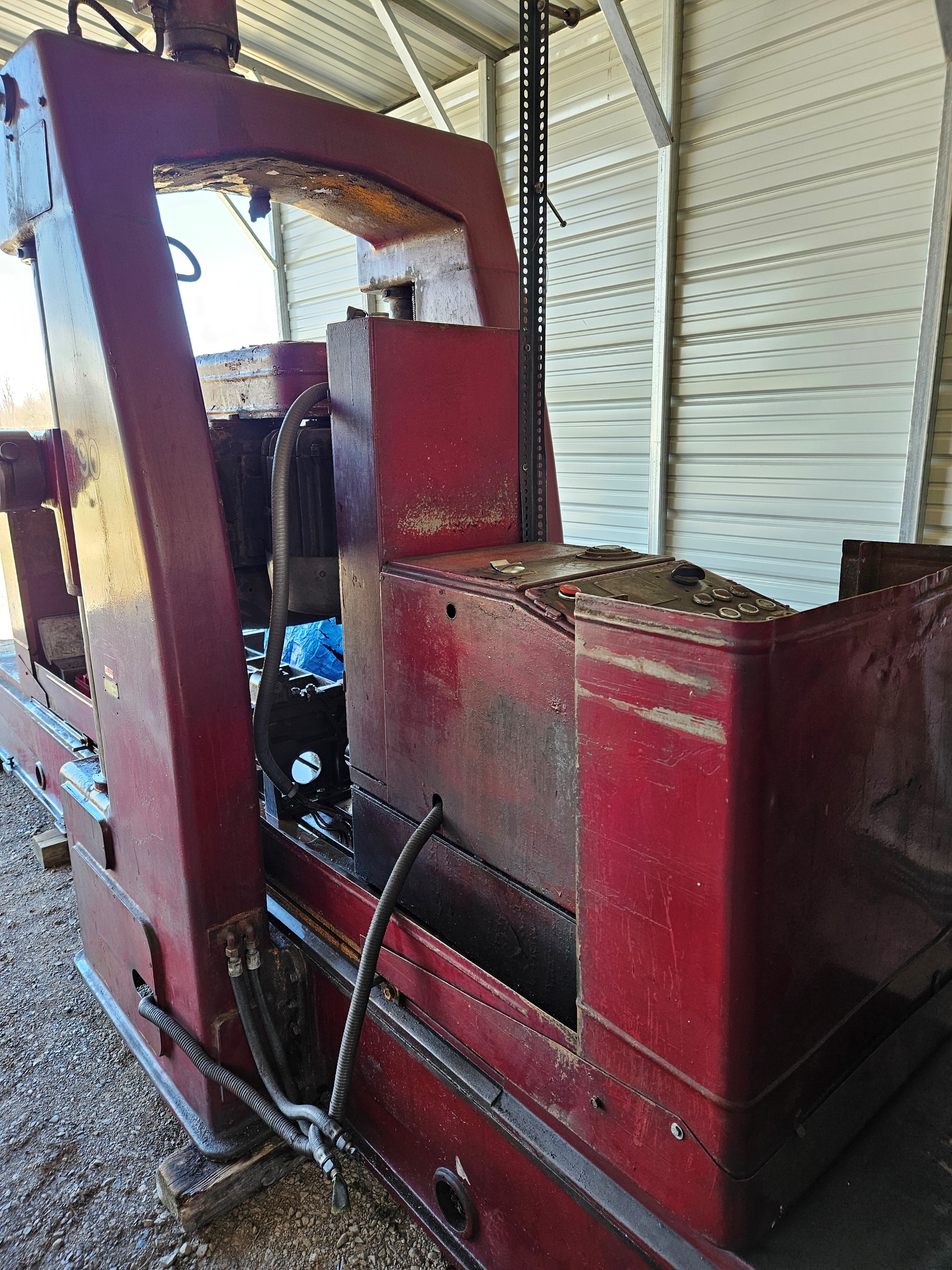

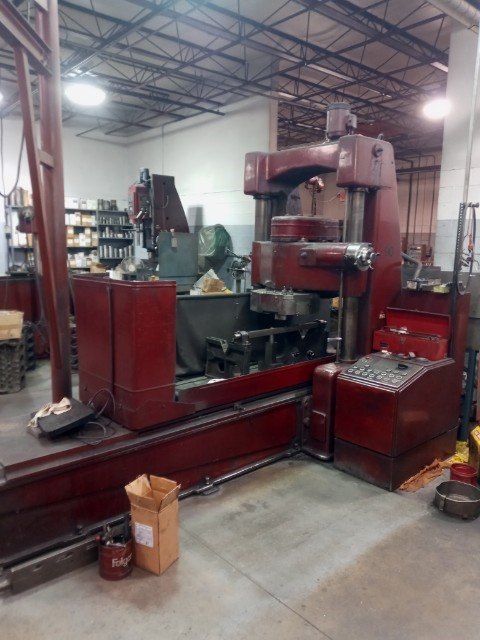

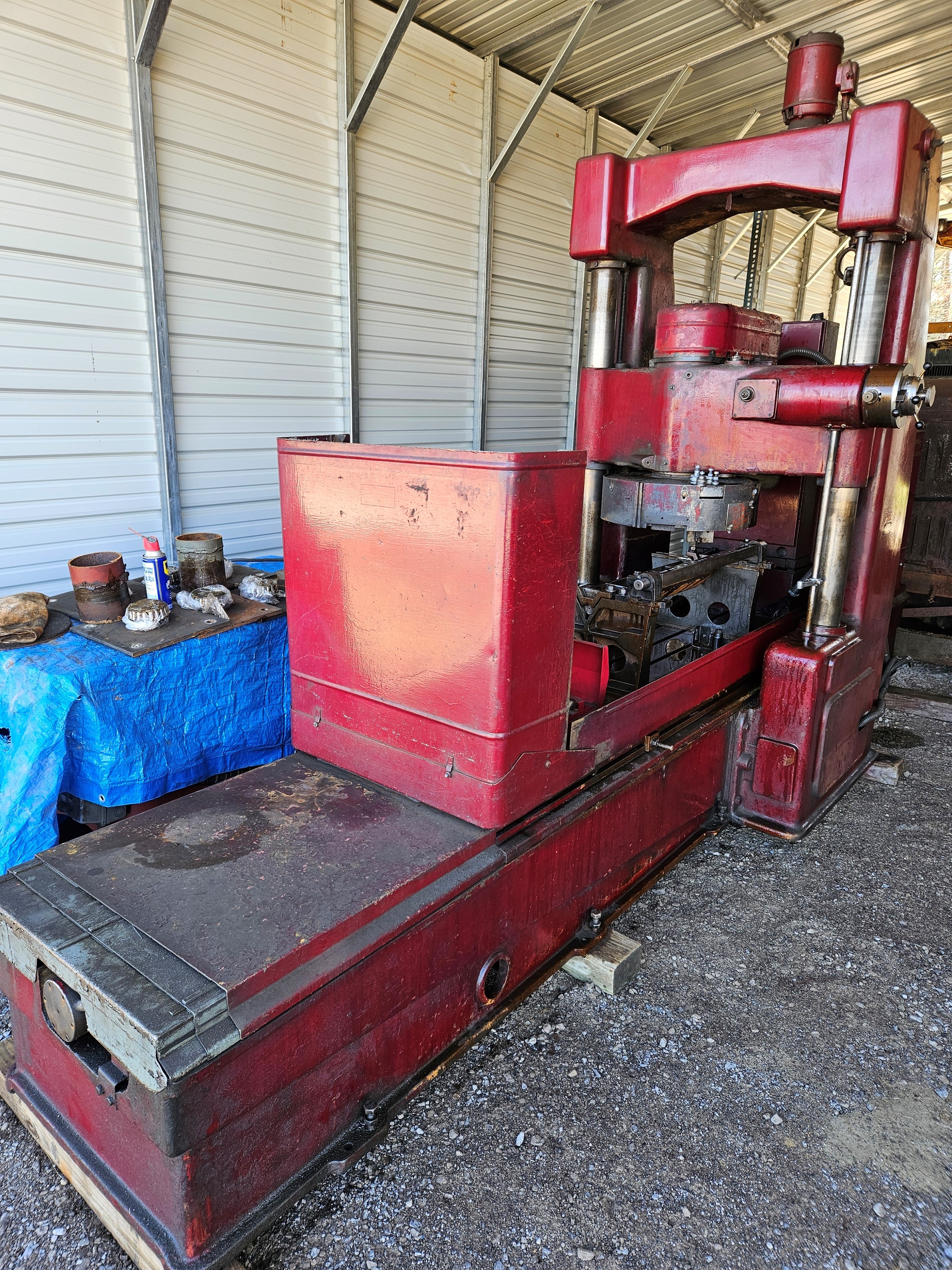

AMC PS-1 Surface Grinder
Specifications:
Max. grinding capacity: 67" x 19" / 1700 x 480mm
Length of table: 114" / 2900mm
Setting up suface: 67" x 20" / 1700 x 500mm
Distance between columns: 30 3/4" / 780mm
Max. height table to wheel: 31 1/2" / 800mm
Table traverse, infinitely variable: 6" - 315" / 0.15-8m per min.
Grinding wheel, segment type: 20" dia. / 508mm dia.
Grinding wheel, speed: 880 r.p.m.
Vertical wheel travel: 31 1/2" / 800mm
Wheel spindle- vertical adjustment: 2" / 50mm
Rate of feed per double stroke: .0005" - .006" / 0.01 - 0.15mm
Motor for grinding wheel: 15 HP / 1400 r.p.m.
Motor for hydraulic table traverse: 2 HP / 960 r.p.m.
Motor for elevation of cross slide: 1.5 HP /1400 r.p.m.
Coolant pump motor: 0.5 HP / 2800 r.p.m.
Height from floor to table: 20" / 510mm
Total height of machine: 101" / 2575 mm
Length x width of machine: 174" x 53" / 4420 x 1340mm
Work space required: 266" x 53" / 6750 x 1340 mm
Net weight, approx.: 9,260 lbs. / 4200 kgs.
Shipping weight, approx.: 10,910 lbs. / 4950 kgs.
15'2" x 5'5" x 8' 8" = 706 cu. ft.
