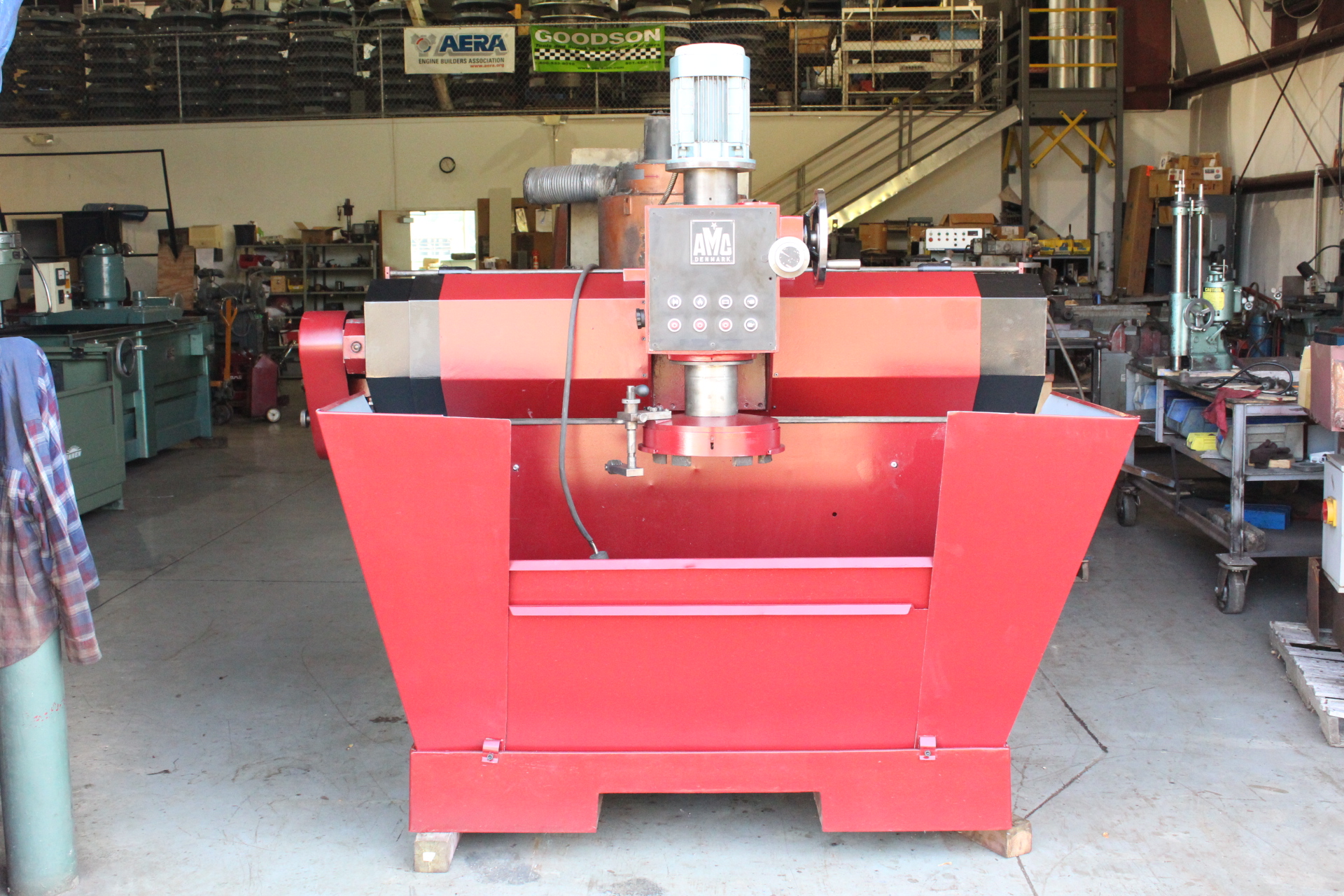

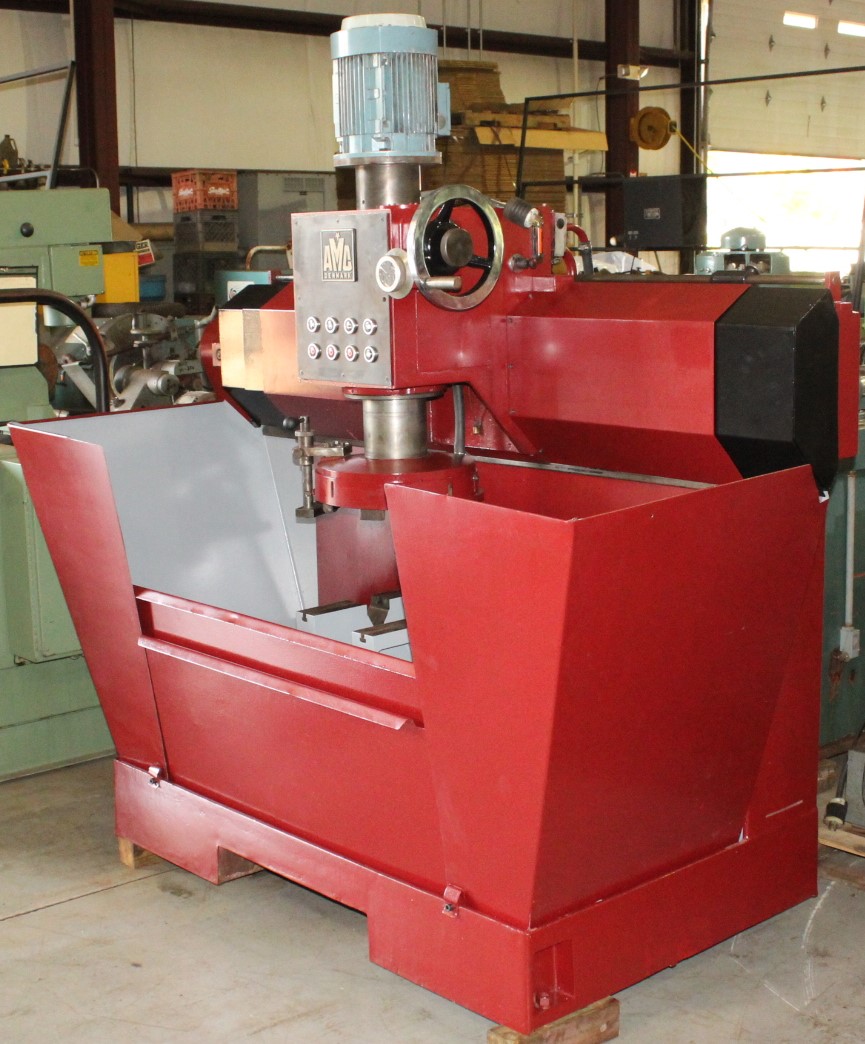

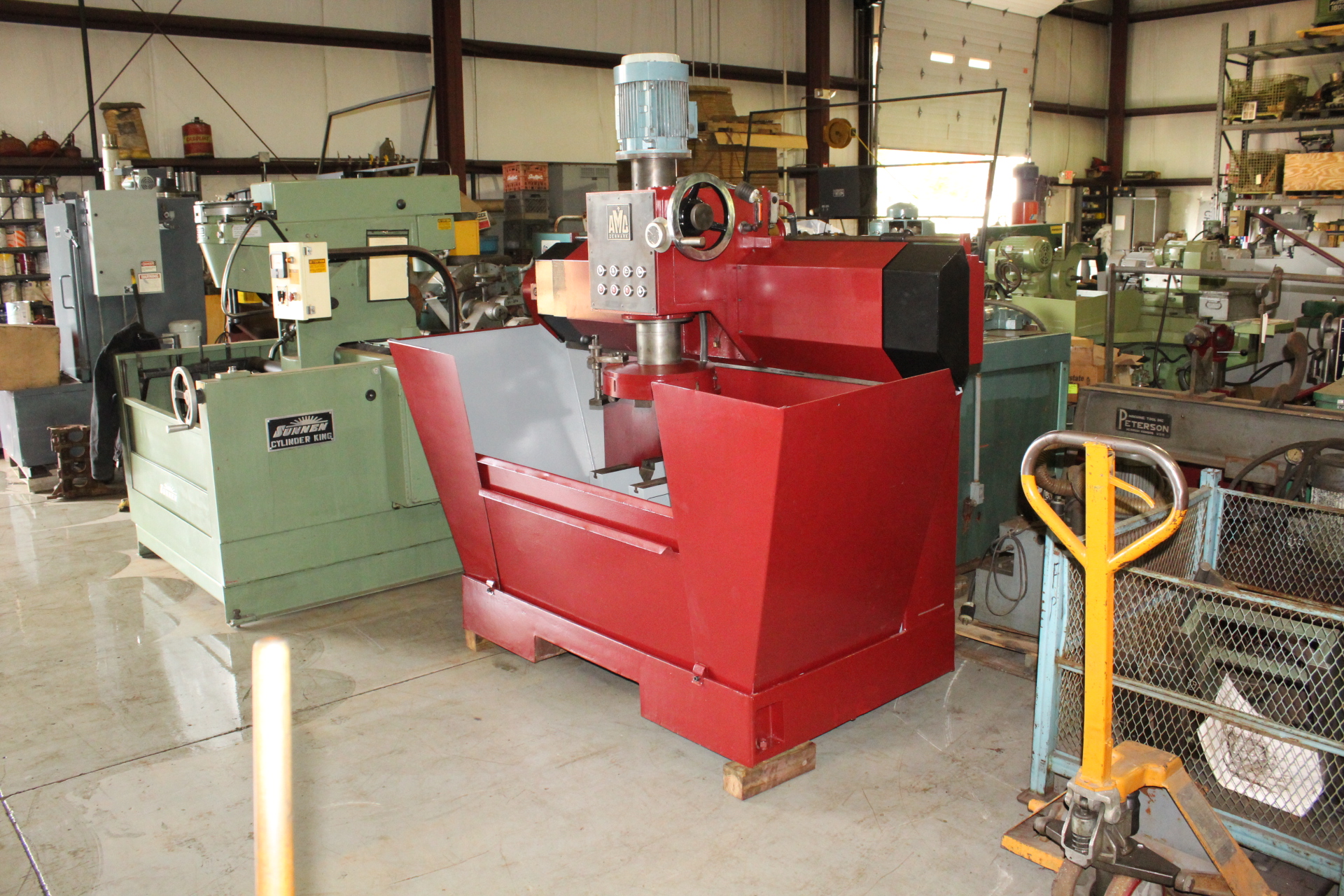

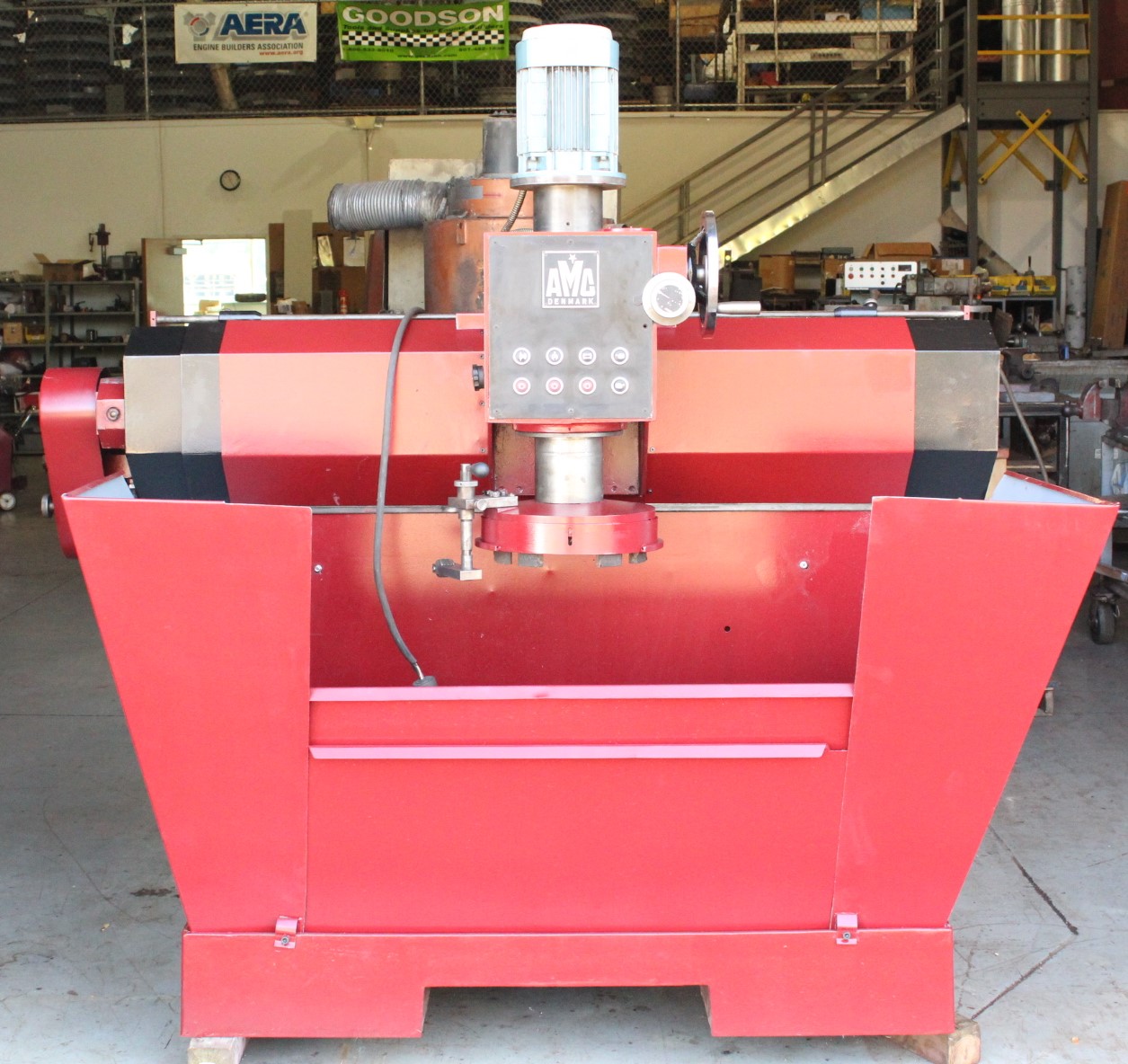

AMC SG-1400 Surface Grinder

Specifications

Grinding wheel motor- 5.5 HP       1400 r.p.m.

Grinding wheel traverse motor- 1.0 HP      900 r.p.m.

Coolant pump motor- 60 Watt          2800 r.p.m.

Capacity of coolant tank- 95 litres        25 gallons

Max grinding length- 1400 mm        55"

Max grinding width- 340 mm          13.5"

Max height of workpiece- 850 mm      33.5"

Table Surface- 1400 x 600 mm         55" x 23.5"

Grinding wheel dia- 350 mm     14"

Number of segments- 12

Vertical movement of wheelhead- 240 mm       9.5"

Fine feed of wheelhead per graduation- .01 mm      .0005"

Wheelhead traverse speeds, stepless- 800-4000 mm/min.         32"-157" per min.

Length of Machine- 2290 mm      90.5"

Width of Machine- 1000 mm        39.5"

Height of Machine, max- 2260 mm      89.5"

Height of Machine, min- 2020 mm       80"

Floor space required- 3000 x 1560 mm        118" x 61.5"

Net weight, approx- 1540 kos        3395 lbs.

Gross weight, appox- 1890 kos       4168 lbs.

Shipping Volume- 6.9 cbm.           242 cbf.
