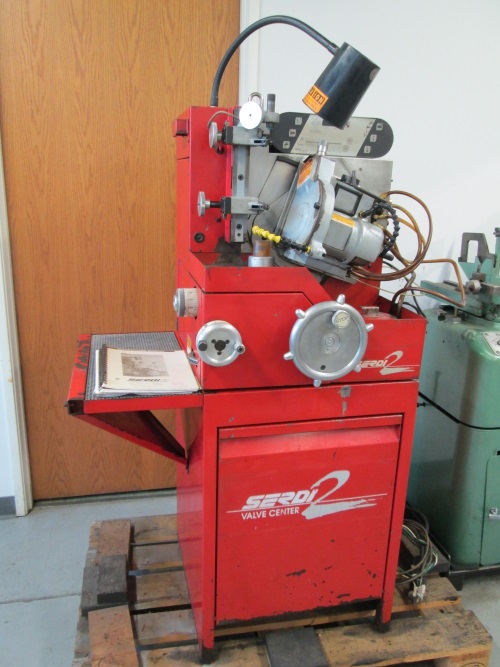

Serdi 2 Valve Grinder

CAPACITY

Valve stem diameter range:
    • minimum: 4 mm (5/32")
    • maximum: 14.3 mm (9/16")

Valve head diameter range:
    • minimum: 13 mm (1/2")
    • maximum: 112 mm (4")

Valve overall length:
    • minimum: 70 mm (2" 3/4)
    • maximum: 255 mm (10")

Grinding wheel diameter:
    • 200 mm / 8"

Grinding wheel width:
    • 10 mm / 0.4"

Cup wheel diameter:
    • 100 mm / 4"

Wheel head motor:
    • Speed 3000 RPM

Valve driving motor:
    • Speed range 160 to 830 RPM

Coolant capacity:
    • 4 liters / 1 US gallon

Grinding angle range:
    • 0° to 47°

ELECTRIC AND AIR SUPPLY

• Voltage 220 V ( ± 10 % ) 50 Hz, 16 ampers
• Air supply 6 bars; 6 m³/hour

DIMENSIONS AND WEIGHT

• Weight 150 Kgs / 330 lbs
