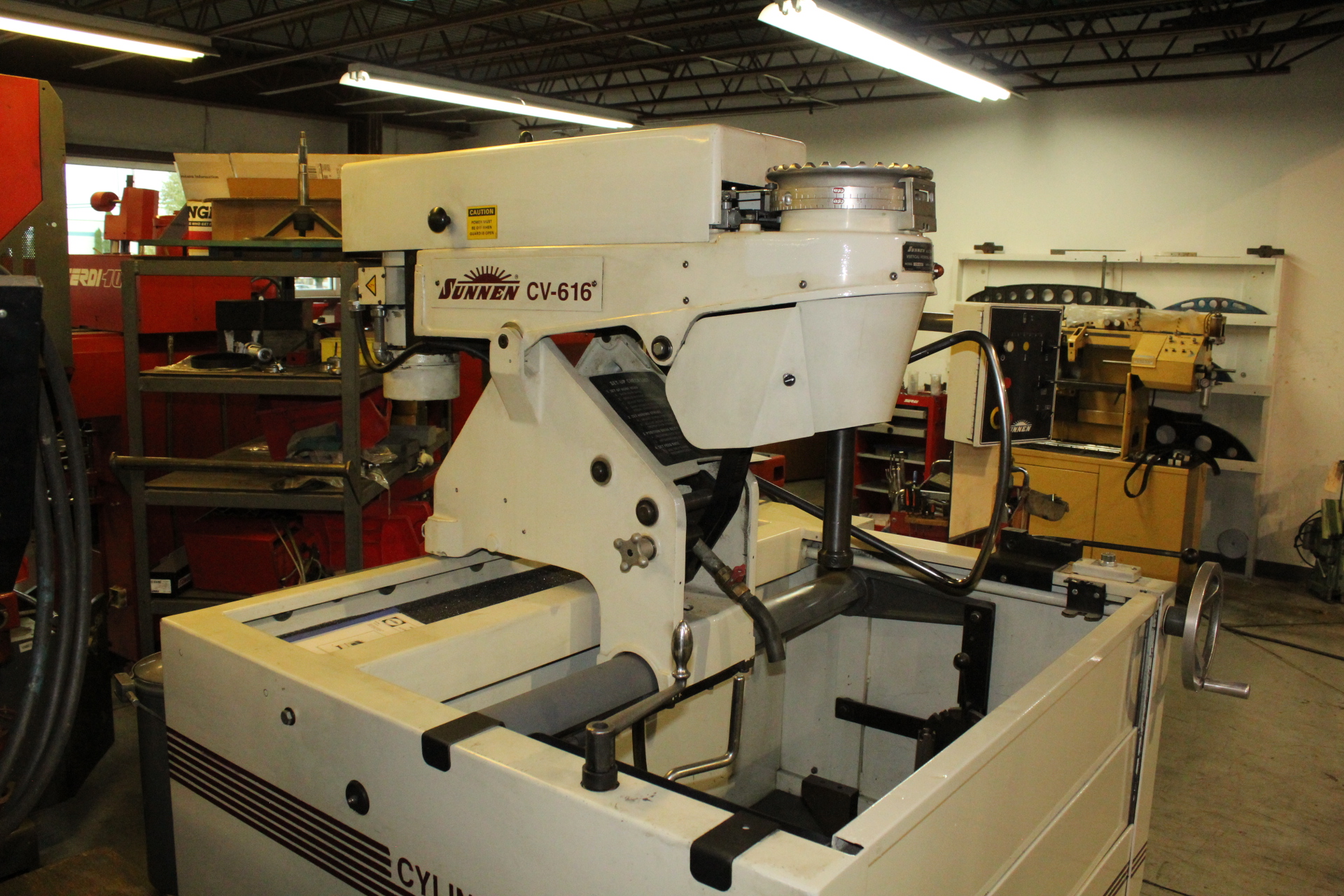

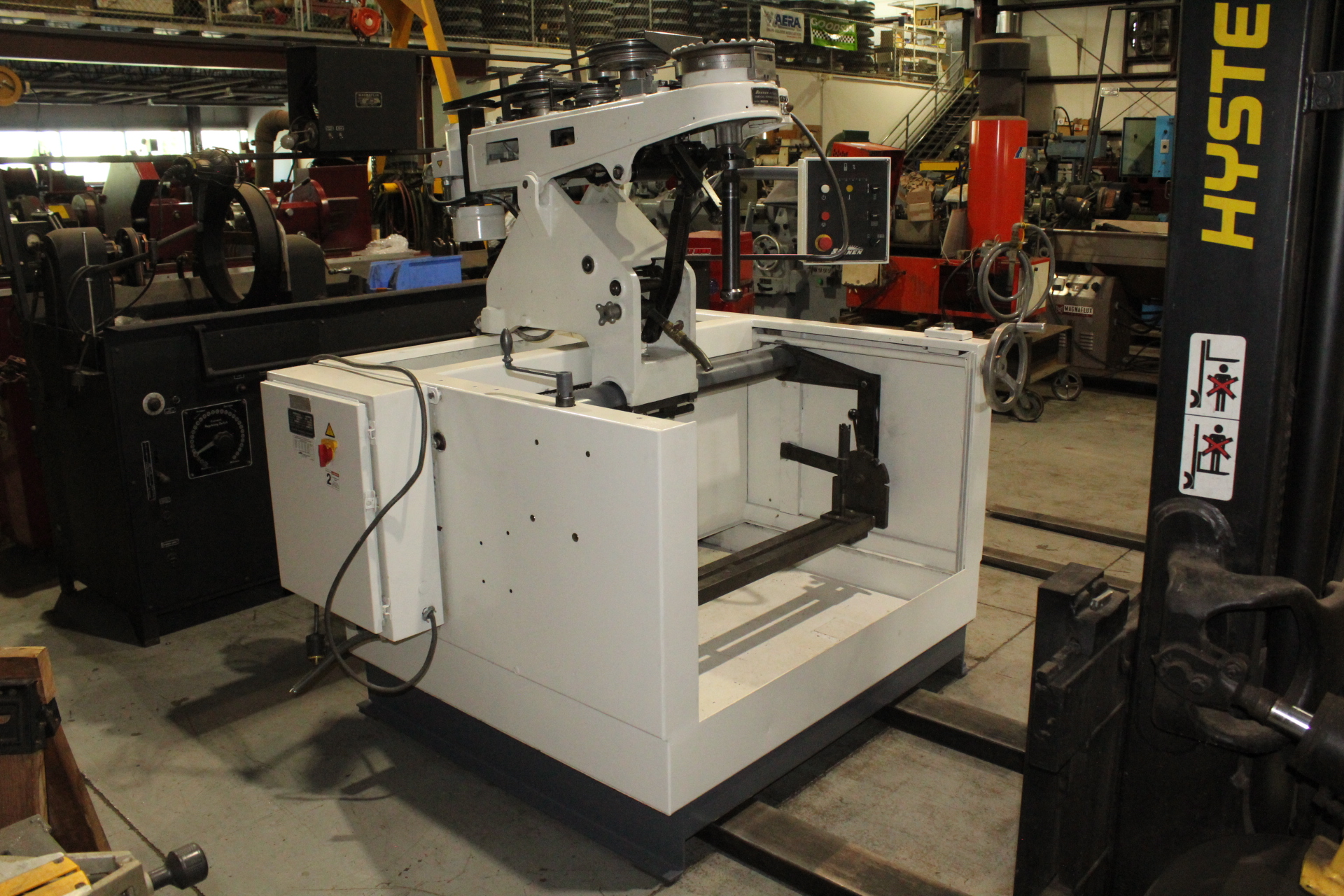

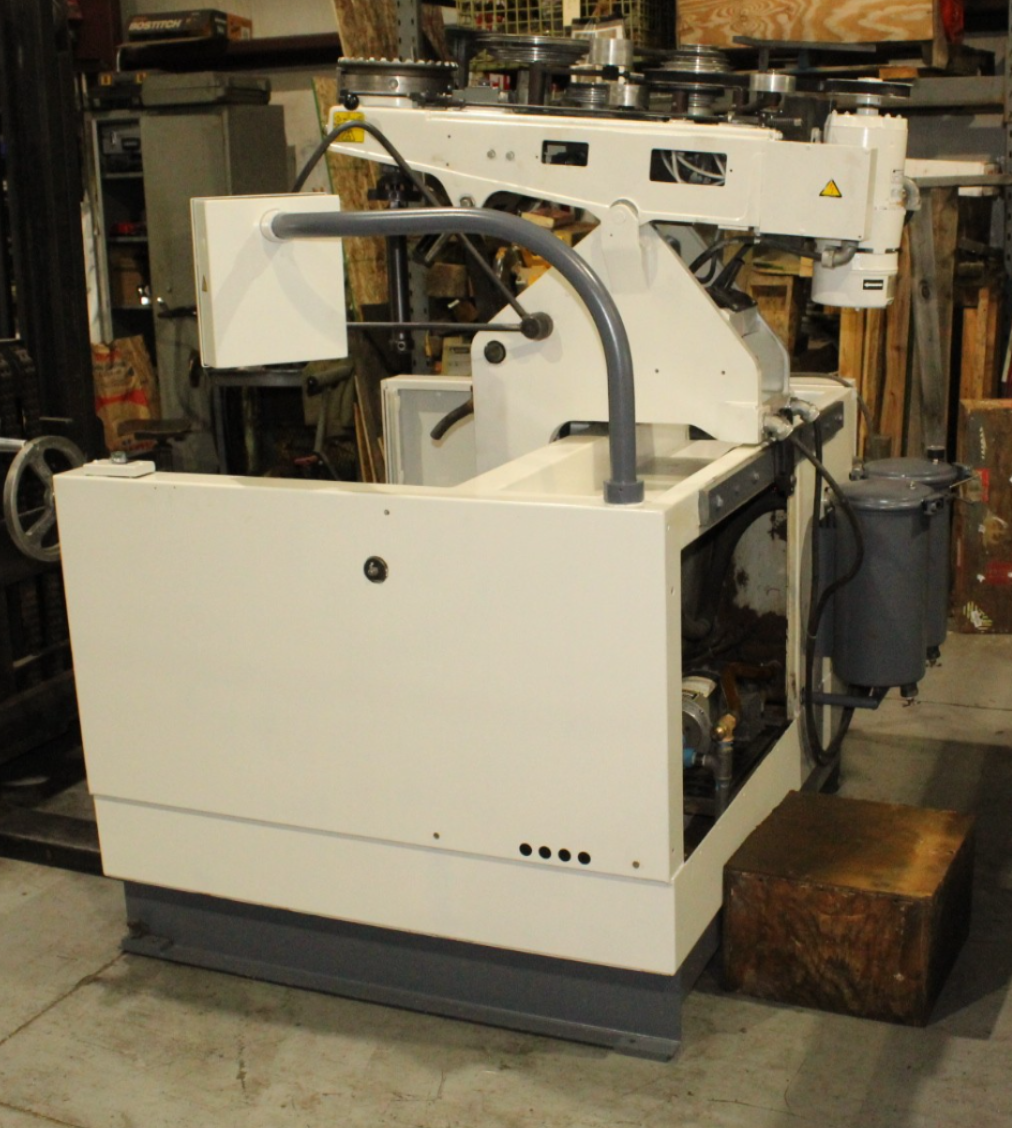

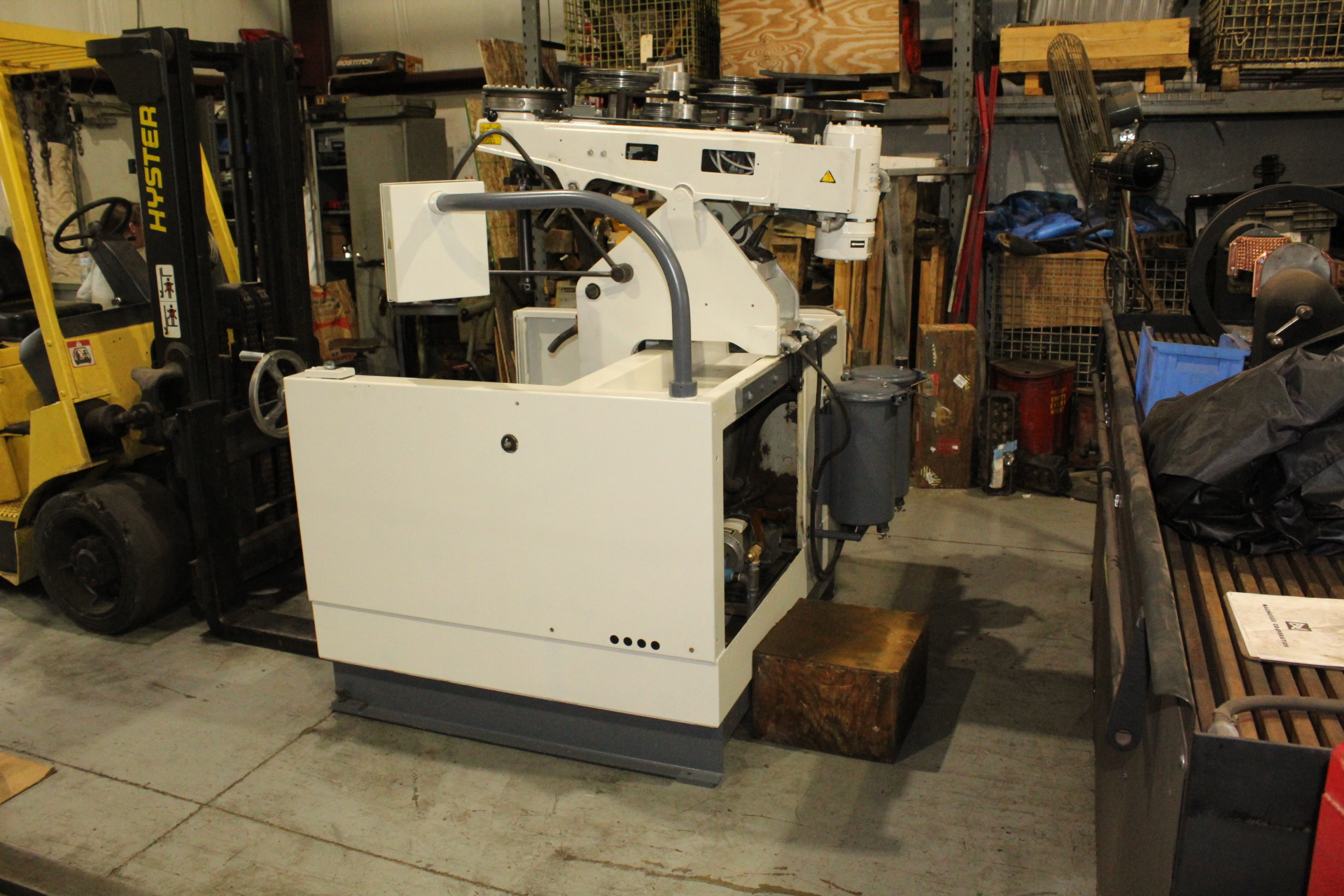

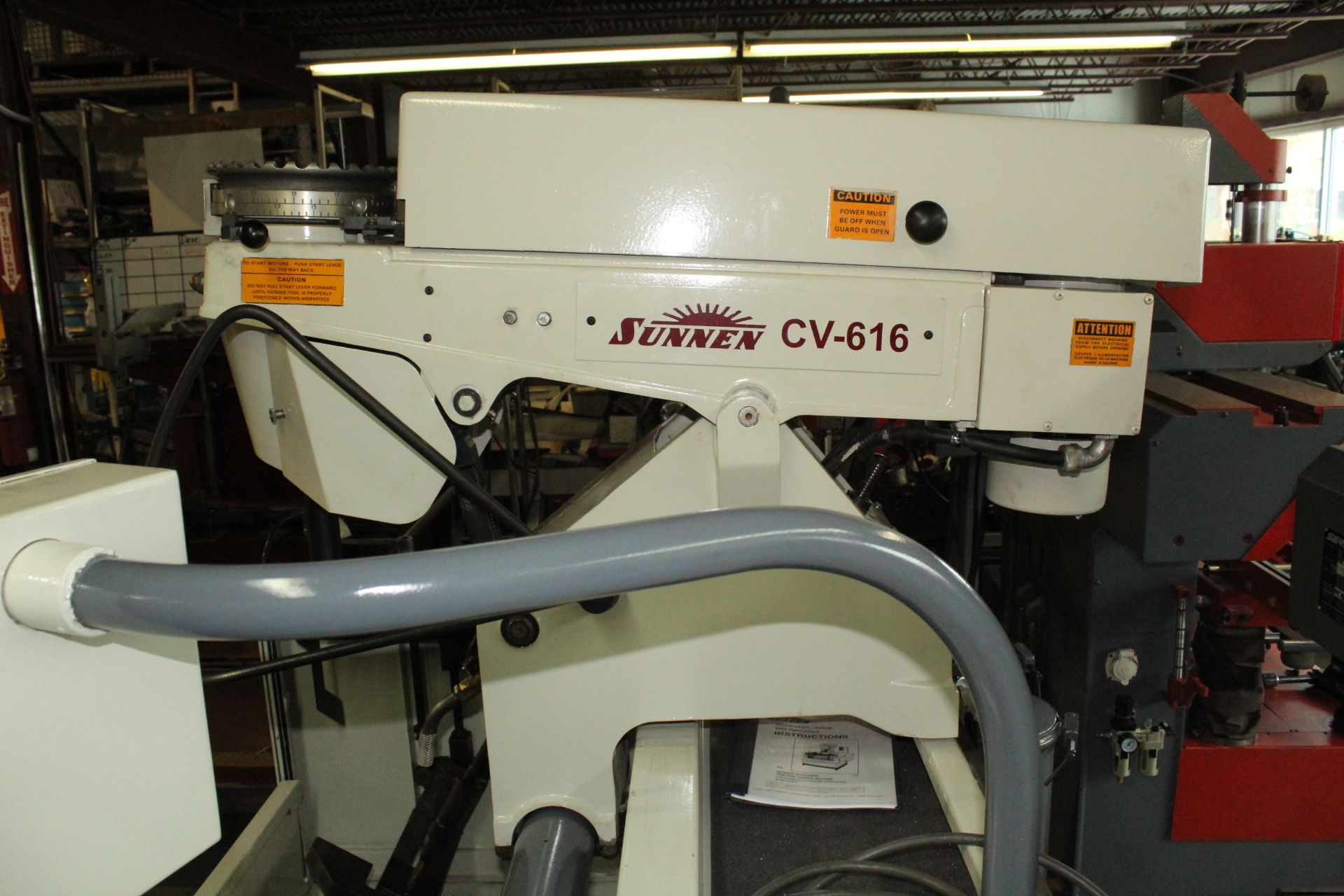

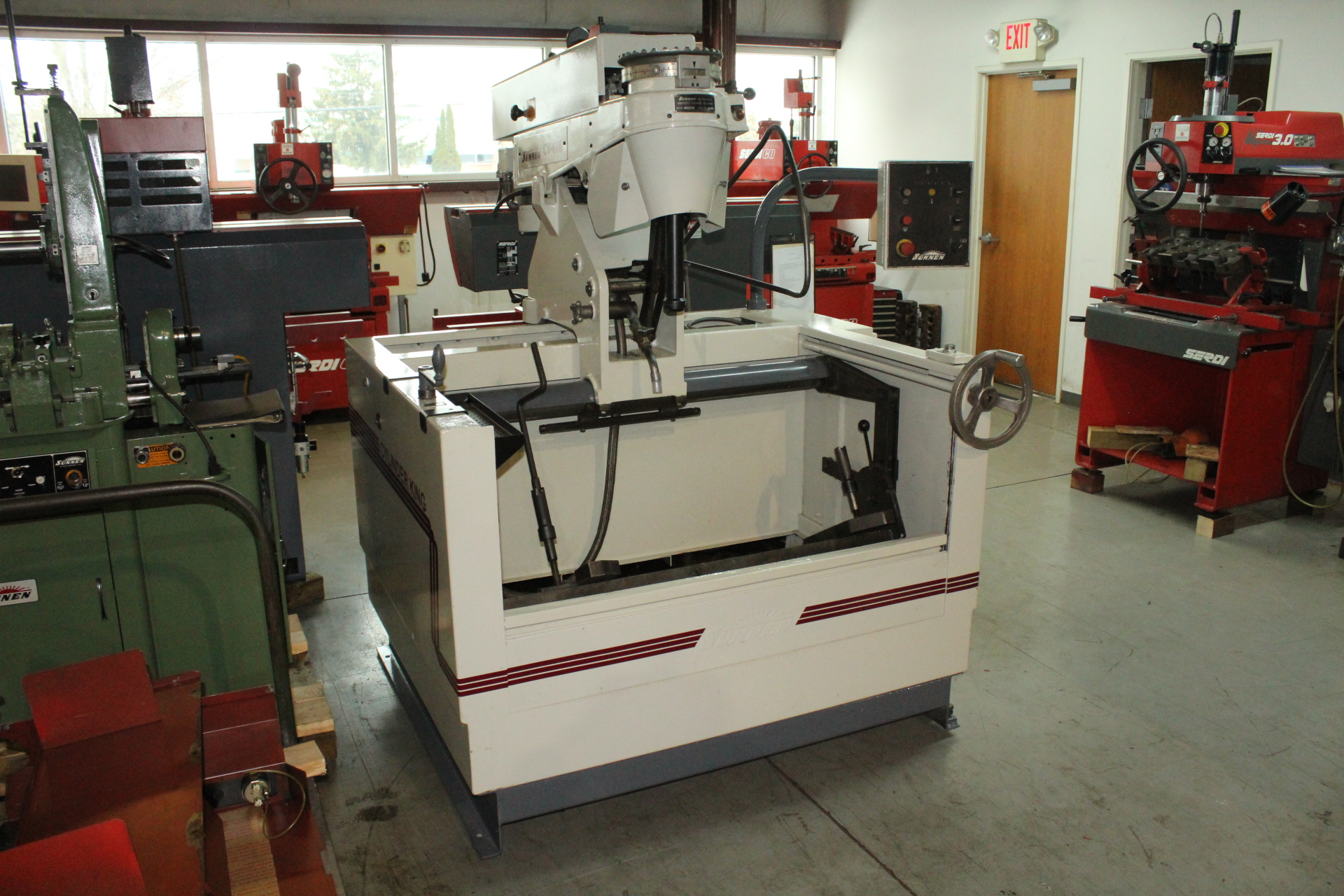

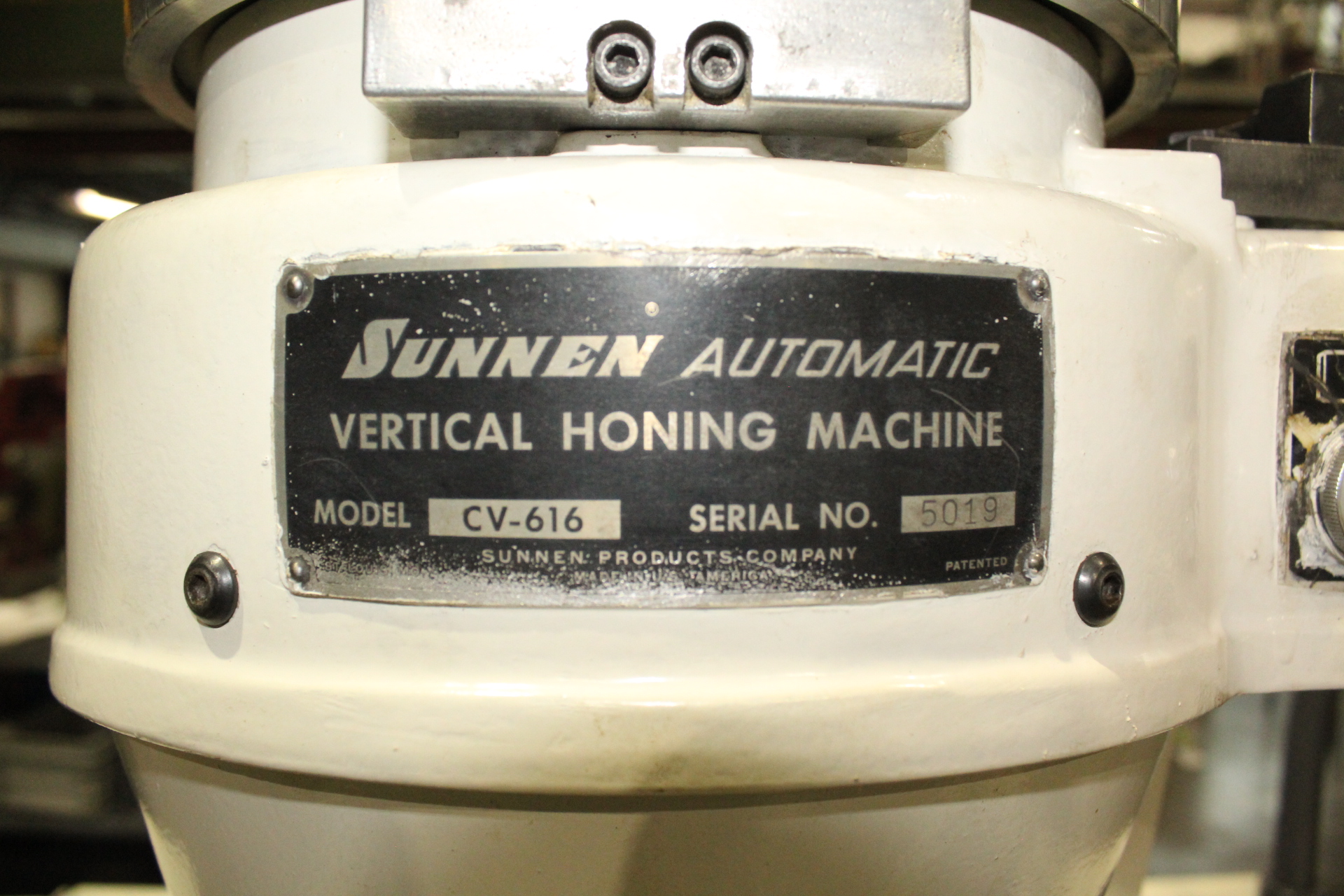

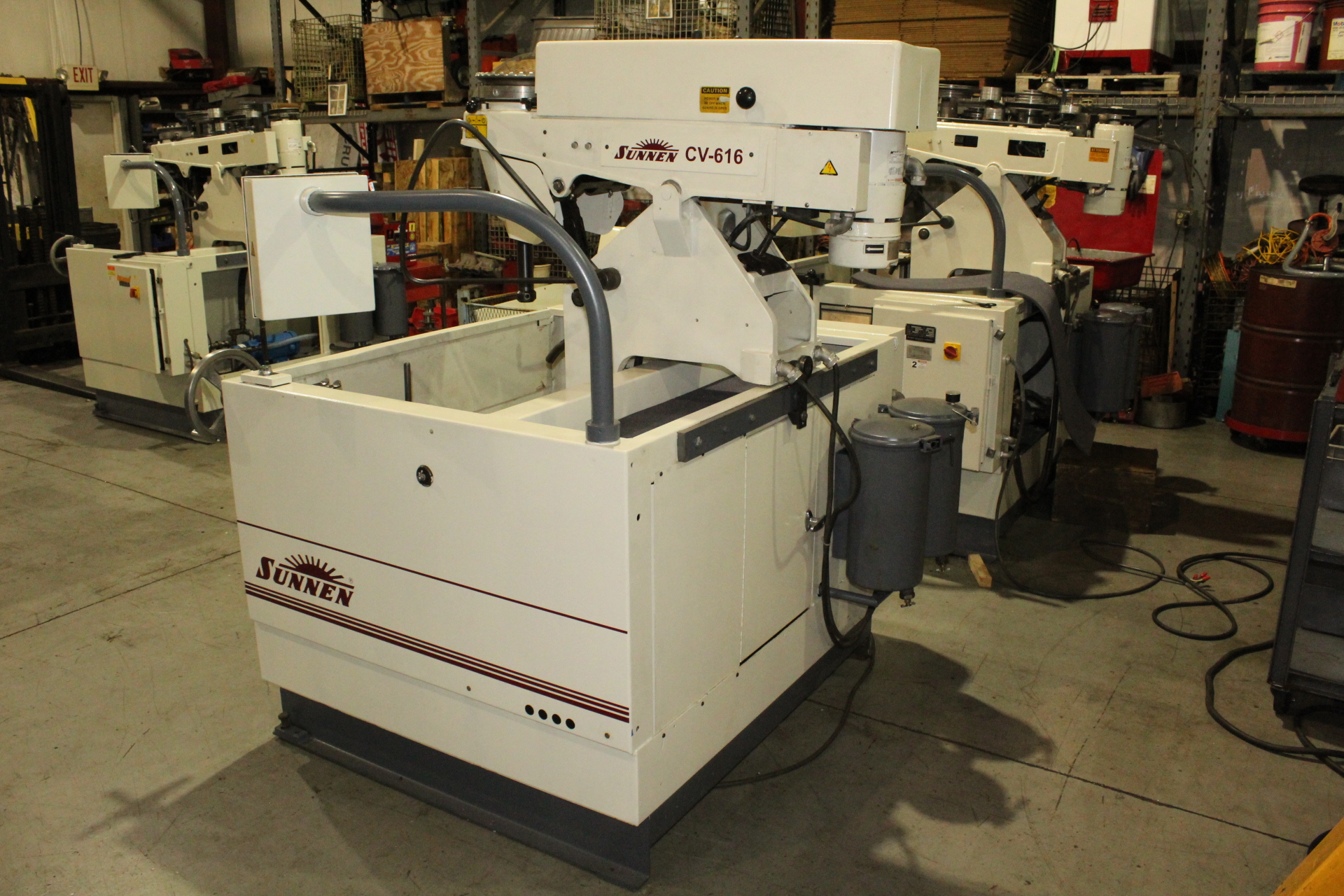

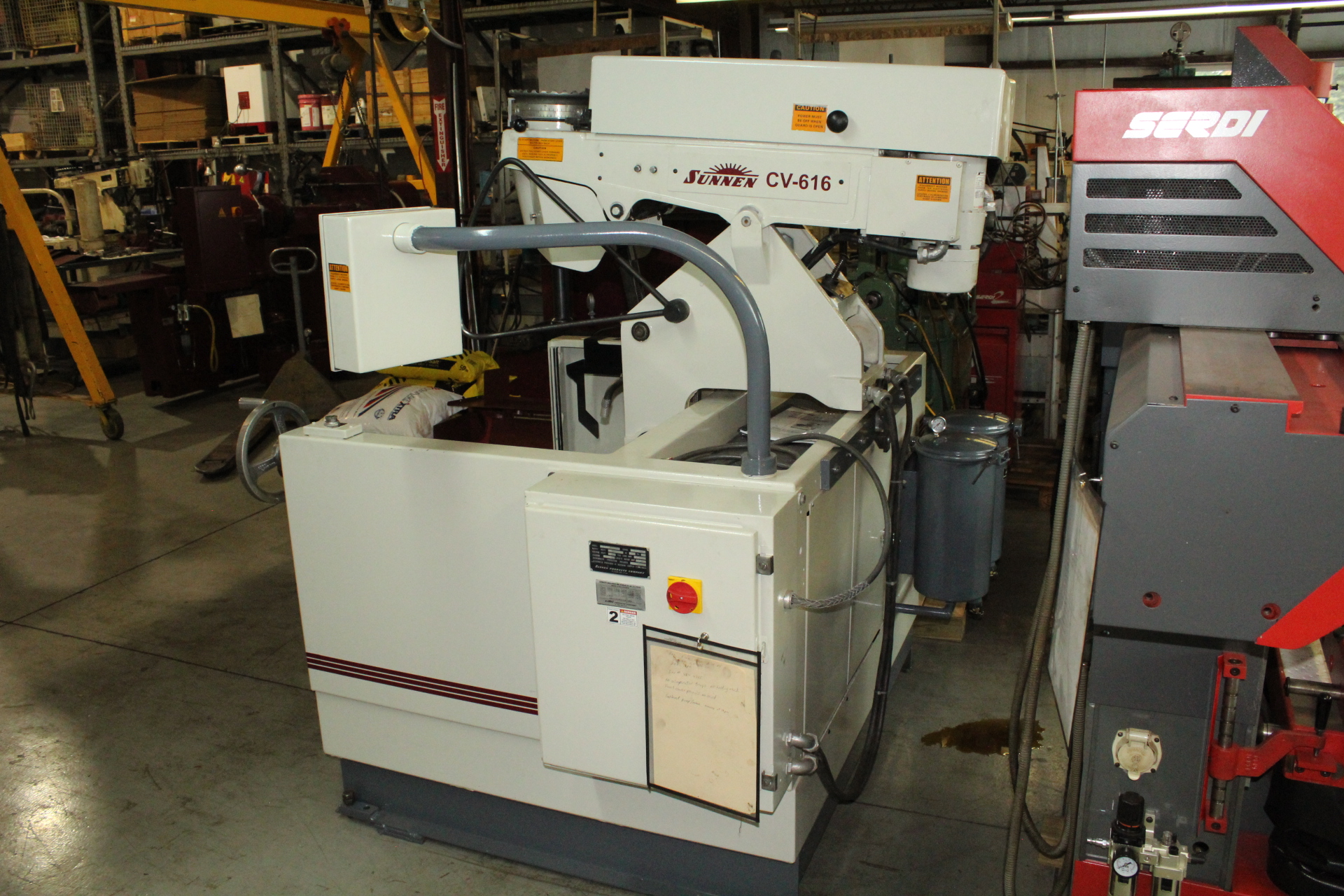

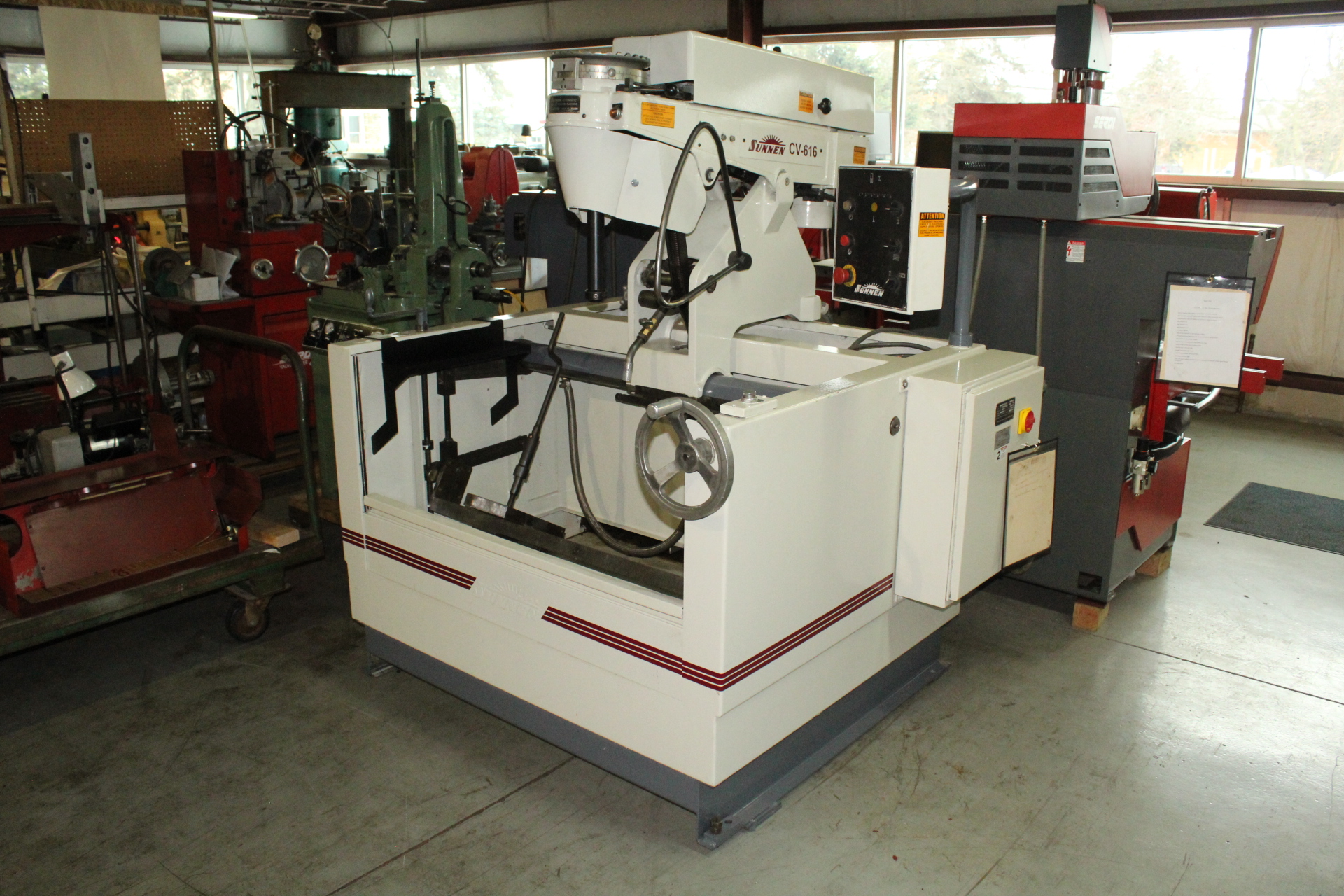

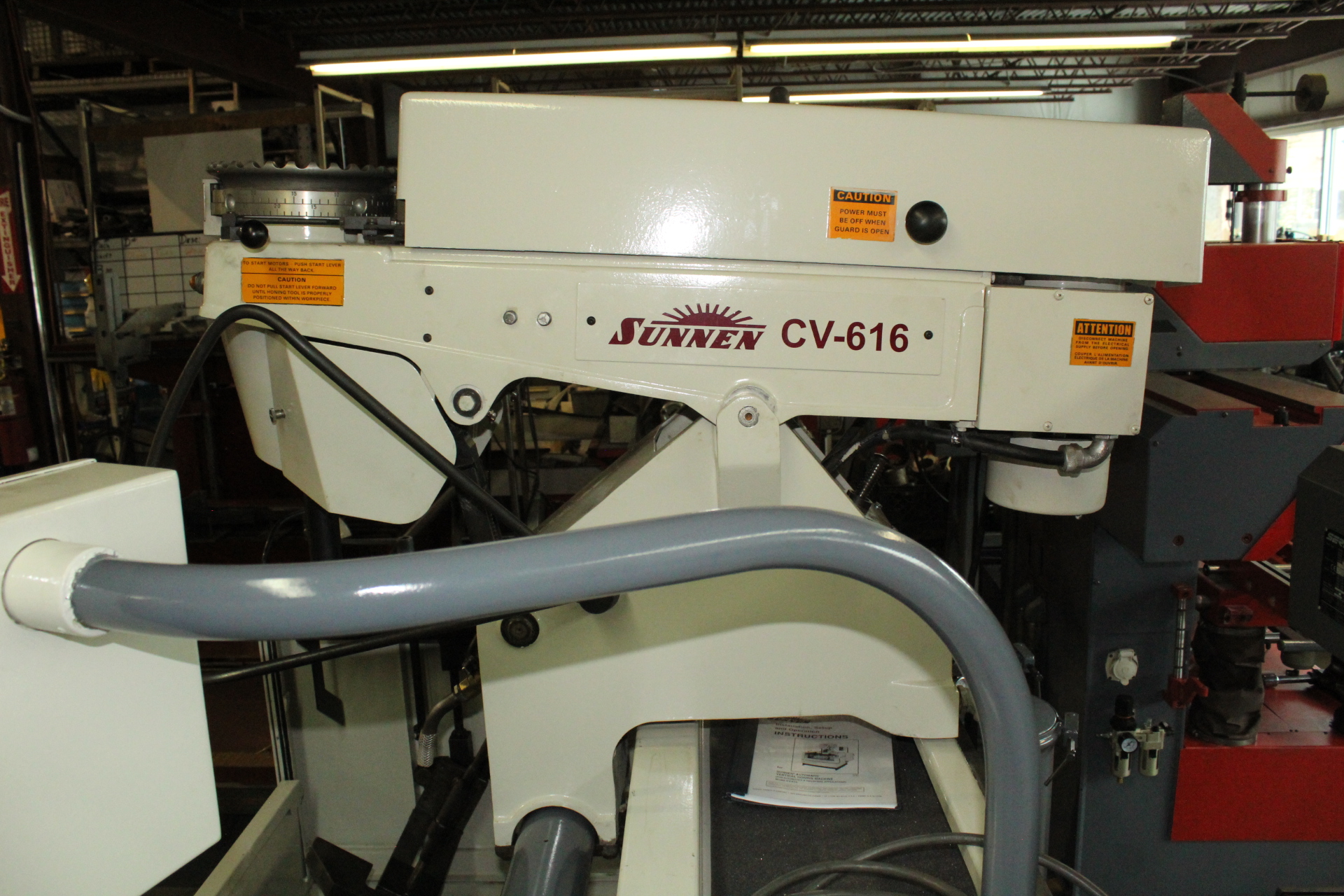

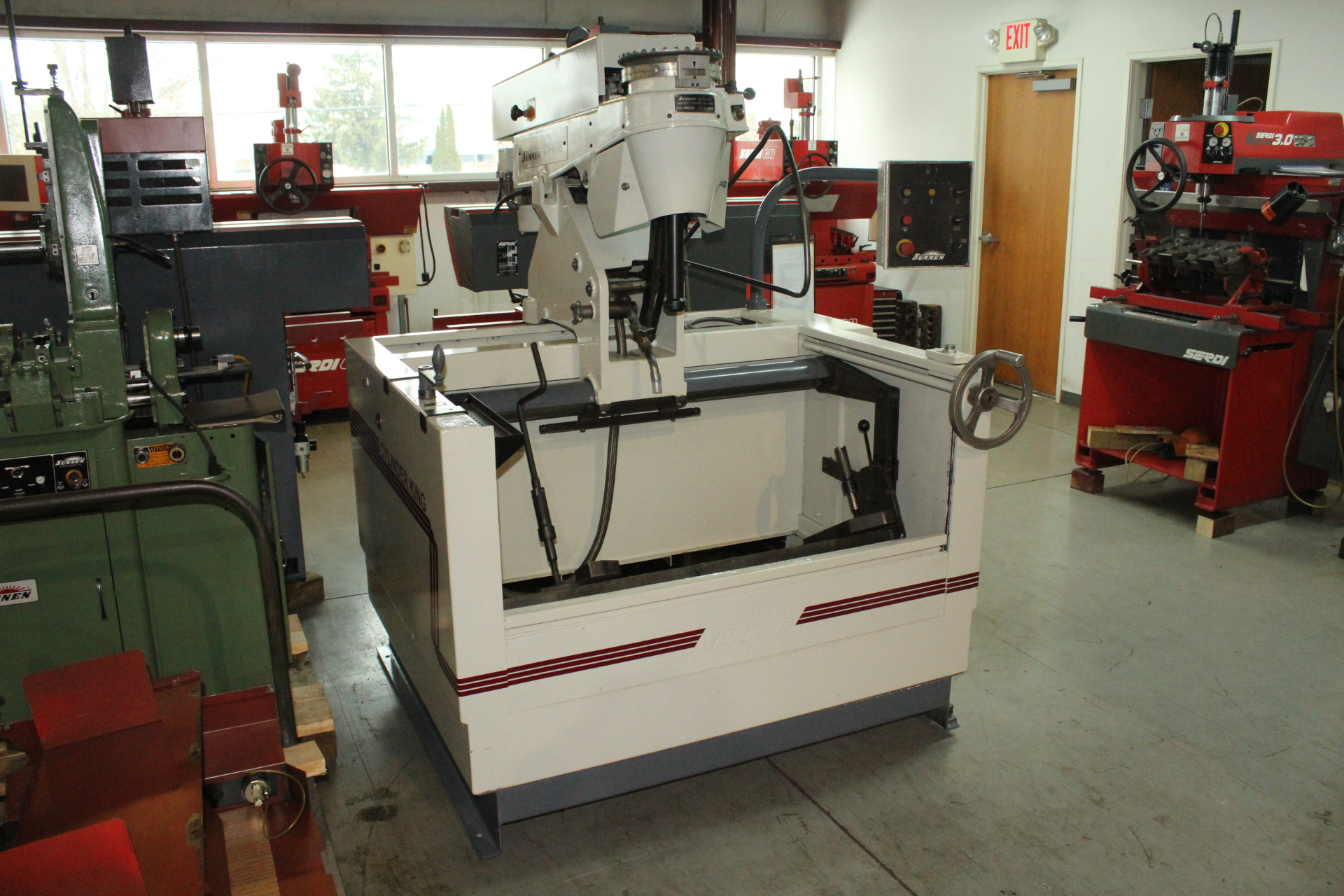

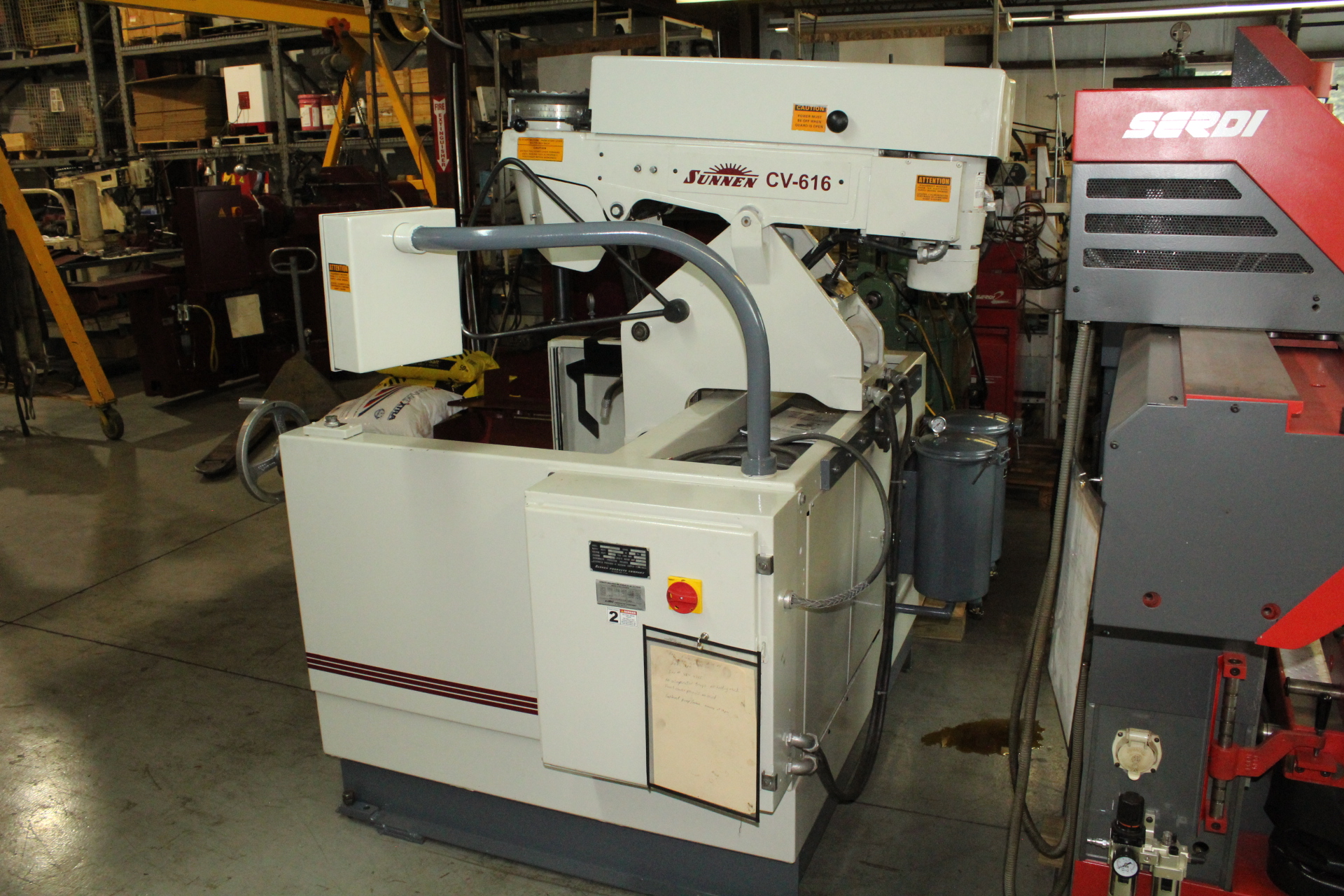

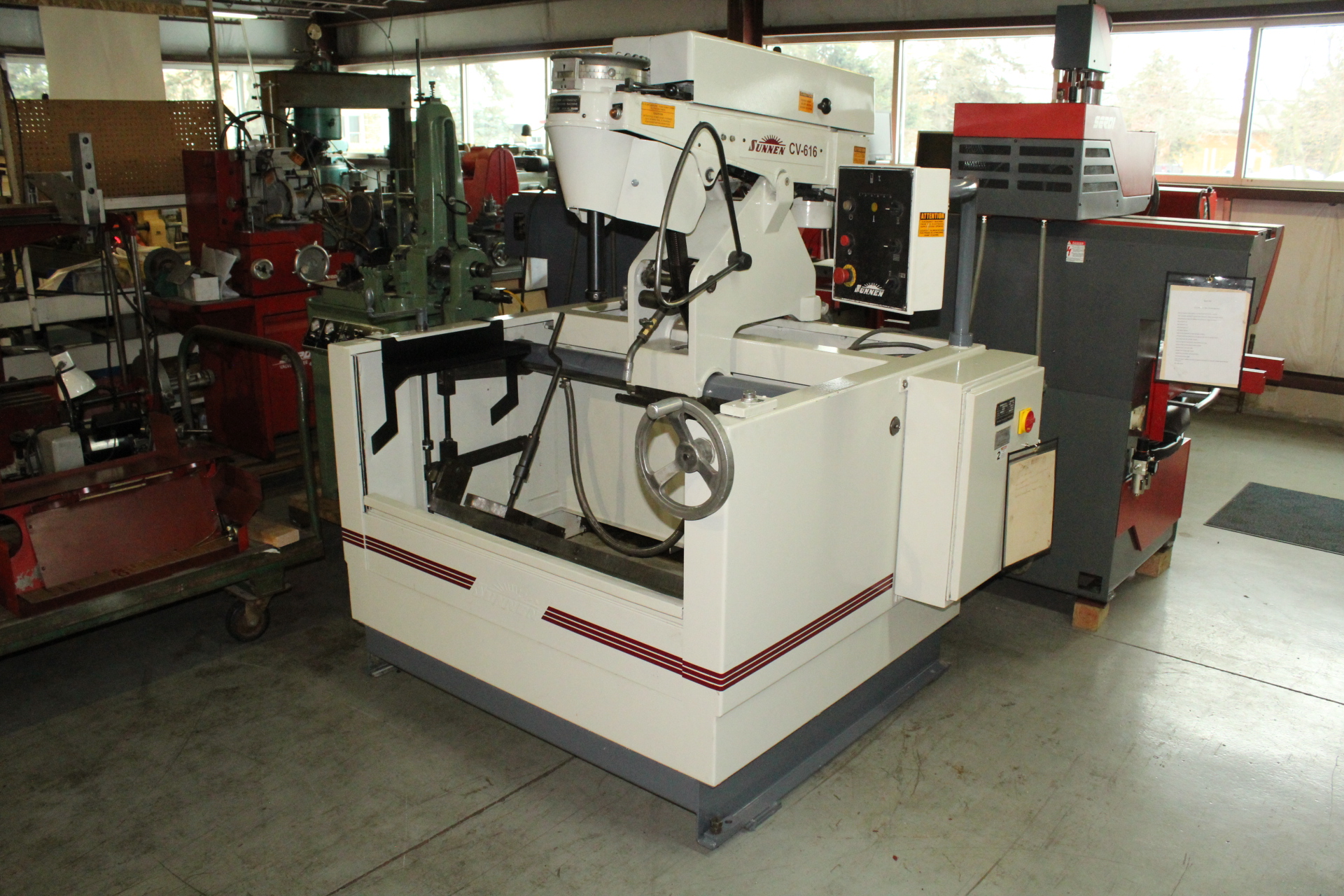

Sunnen CV-616 Cylinder Honing Machine

SPECIFICATIONS

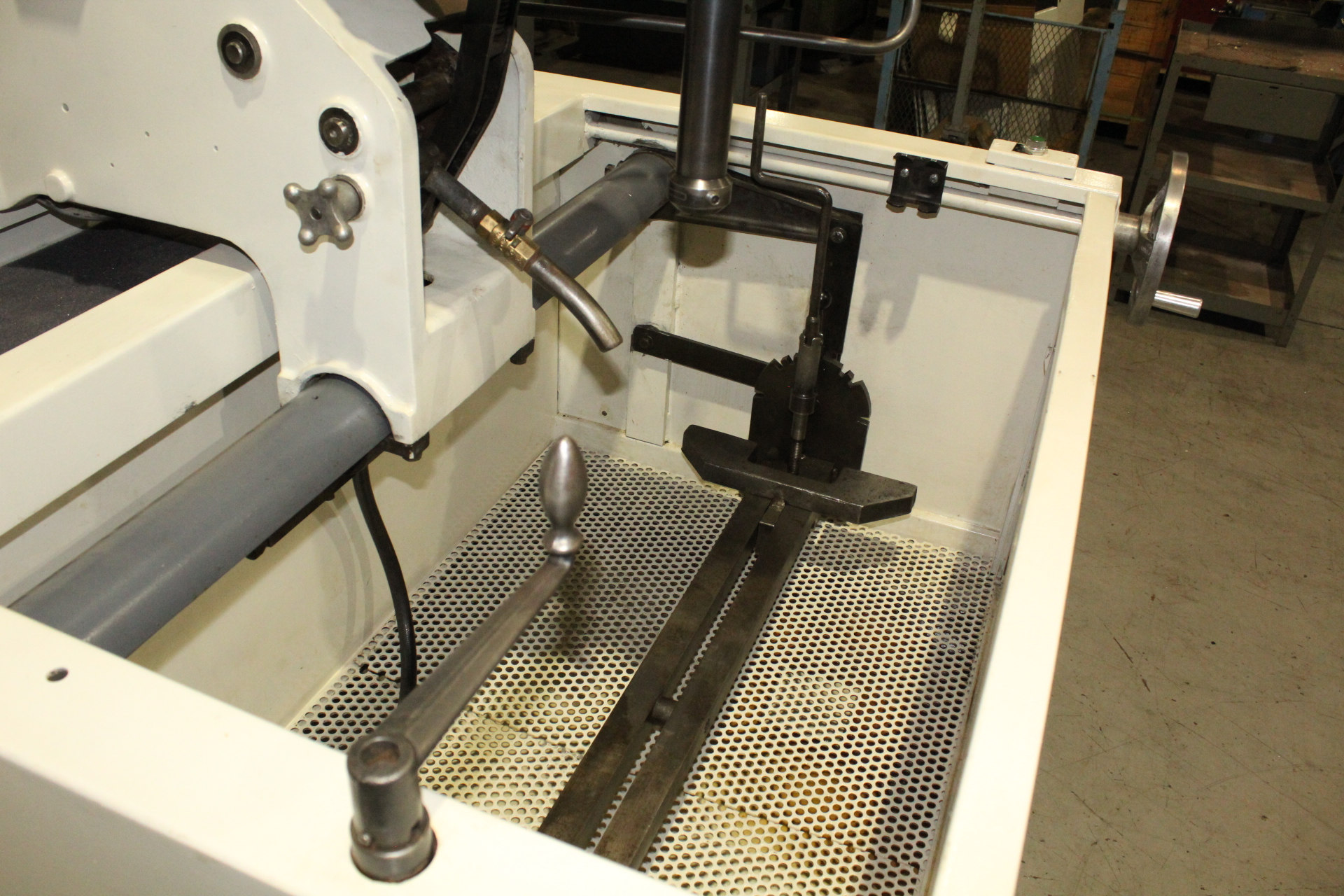

Capacity: V-blocks, both 90° and 60°; overhead and L-head in-line locks; and angle head blocks; up to 42" (1067 mm) overall length

Cylinder Diameter Range: 3" to 5" (76-127 mm) with Standard Hone Head. Full range from 2" to 8" (51-203 mm) with additional Honing Heads

Cylinder Length Range: Up to 11" (279 mm) (18" with special tooling)

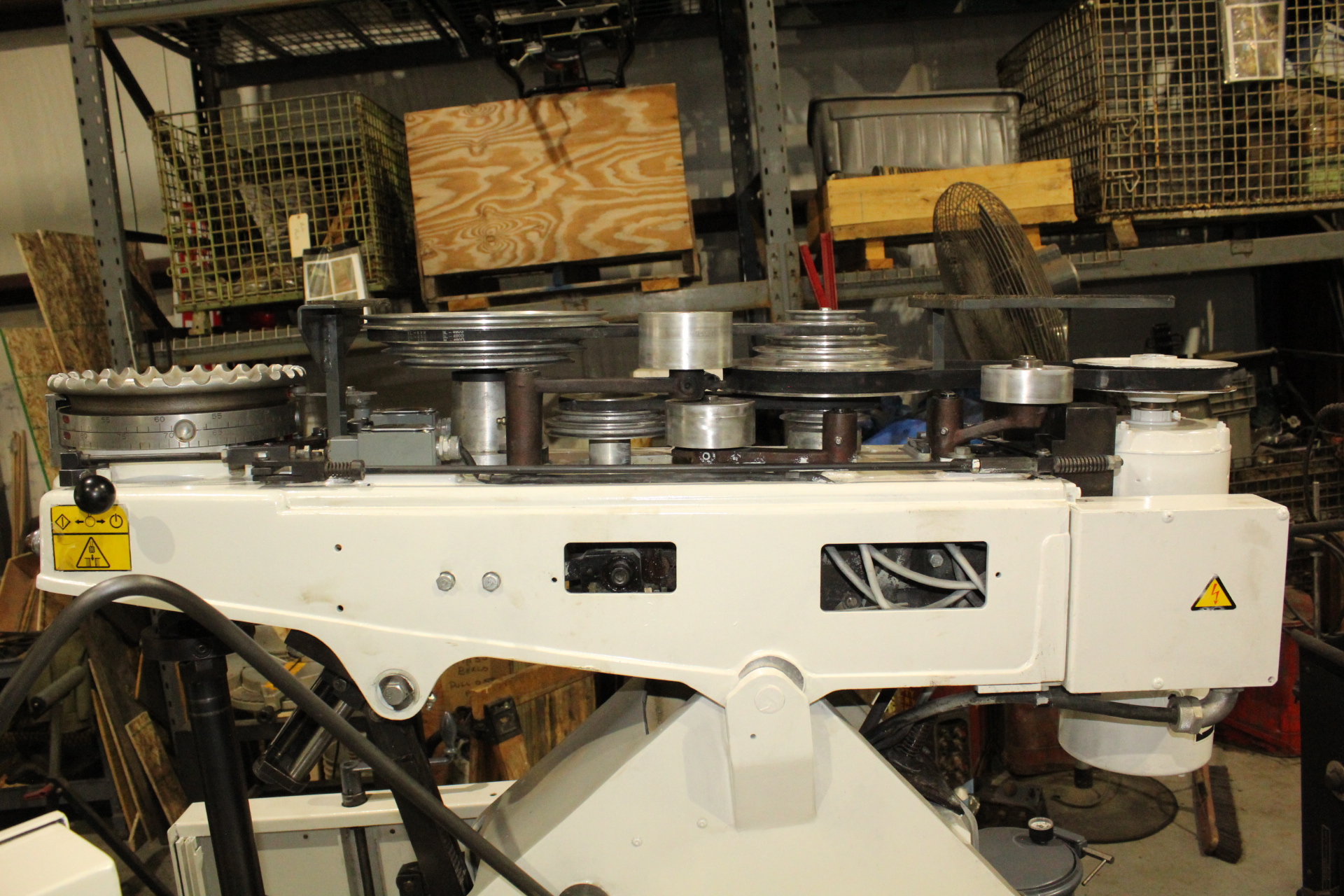

Speeds: Triple reduction belt drive from motor to spindle. Four spindle speeds, three stroking rates provide fast stock removal and desired finish in any block material

Honing Oil Reservoir: 55-gallon (208-liter) capacity. Removable settling tanks and screens for easy cleaning

Built-in Filter System: 1-HP motor; 10-GRM @ 25 PSI; two 3½ gallon Filter containers; 150 cubic inch sludge capacity. Elements quickly and easily removed and installed

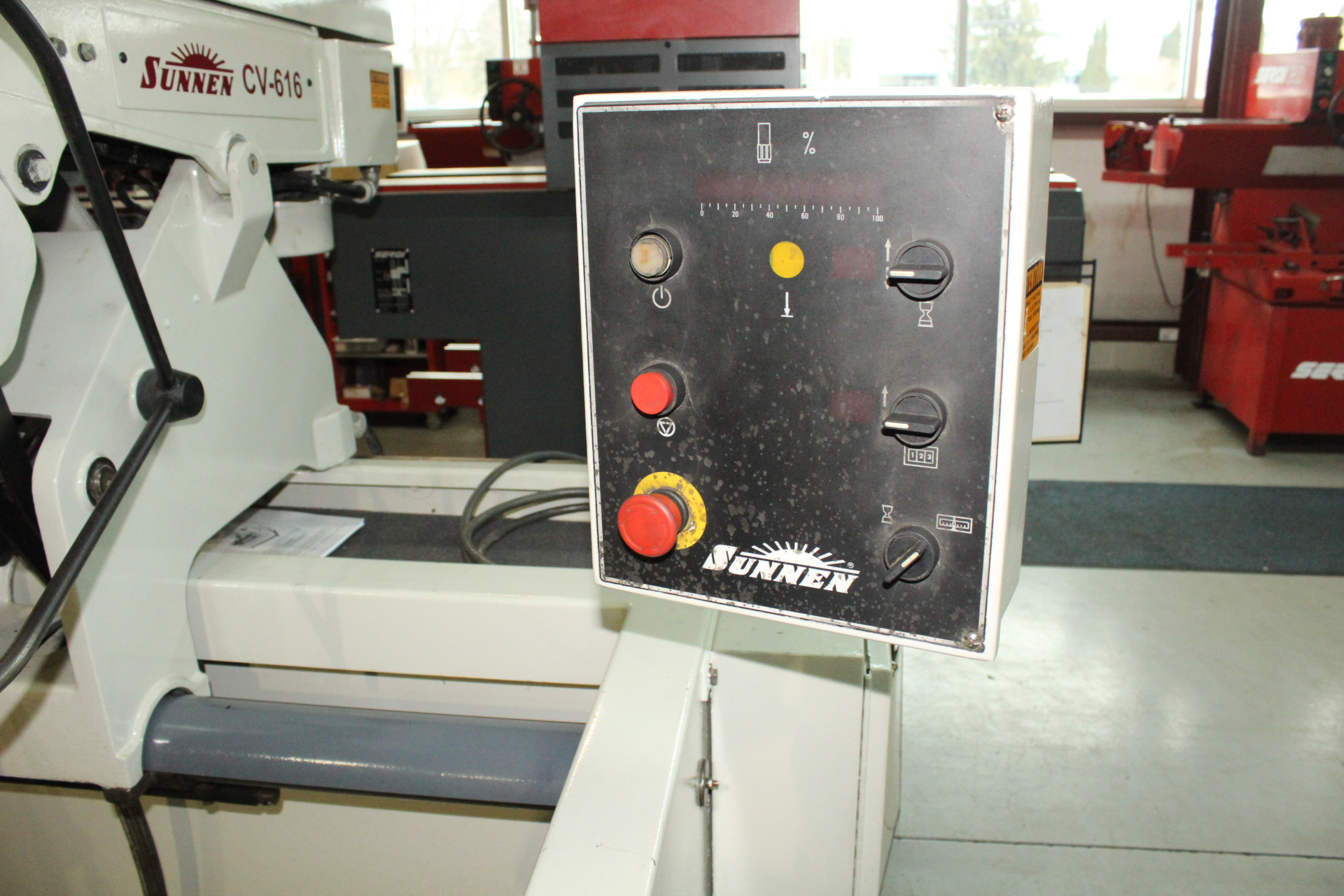

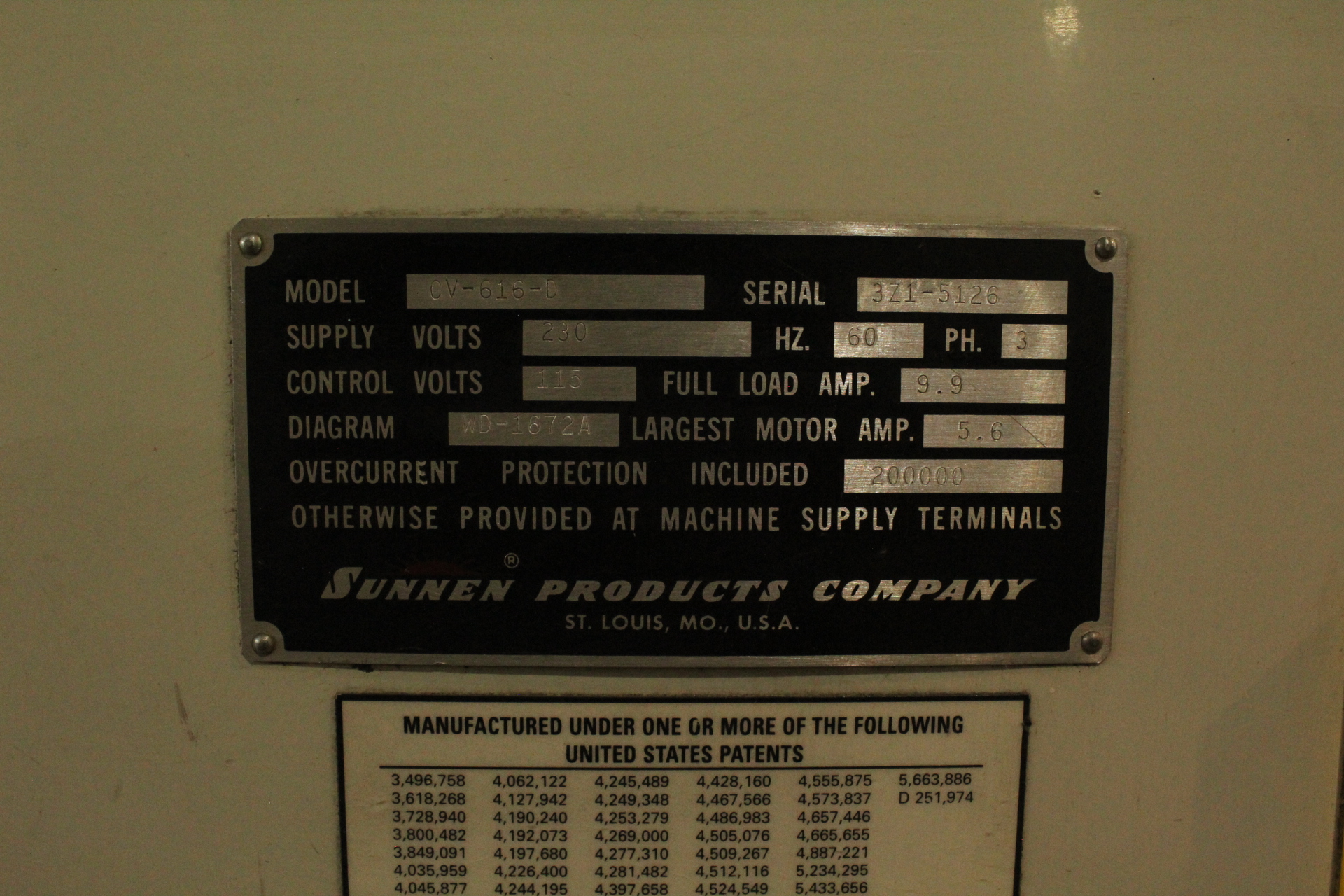

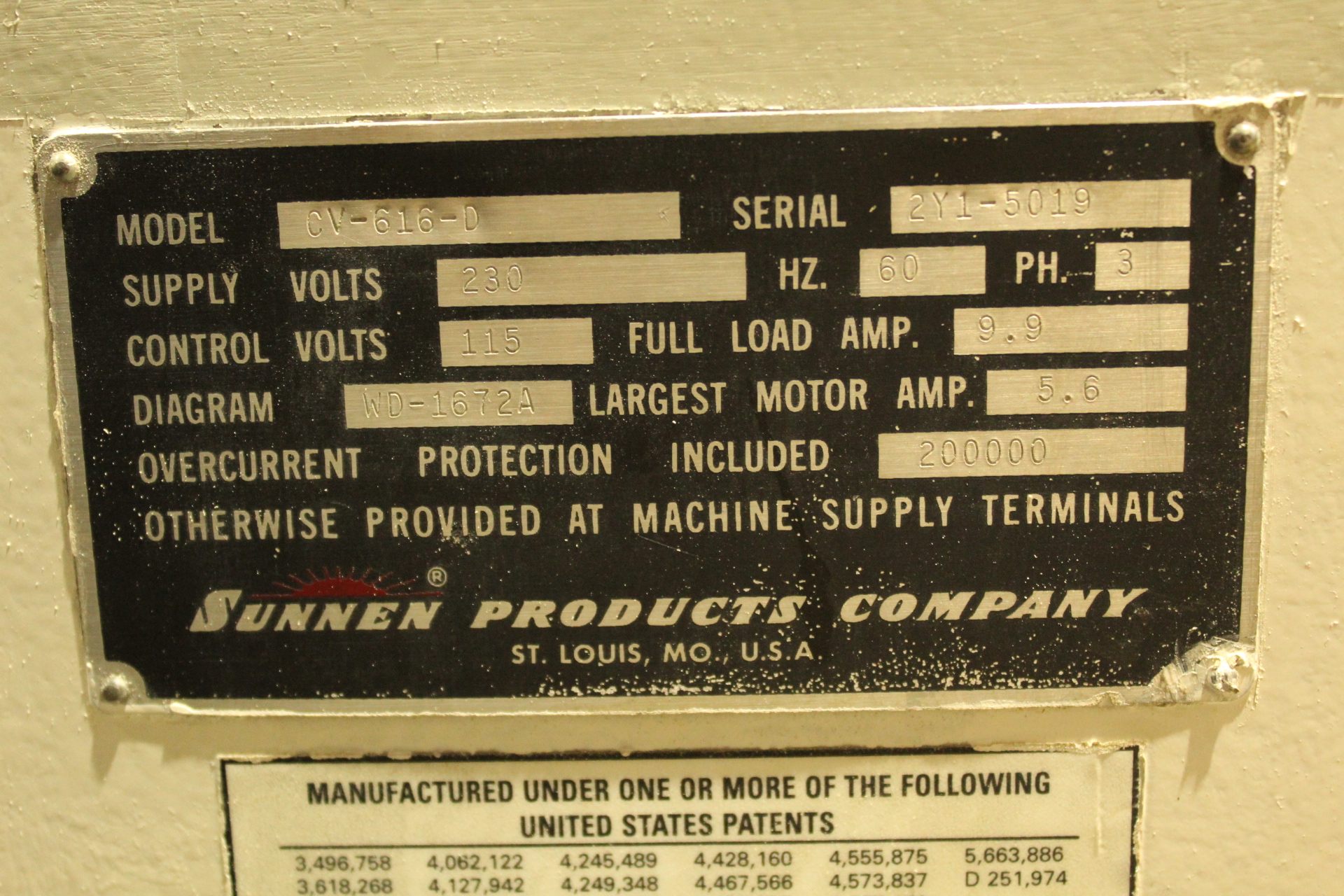

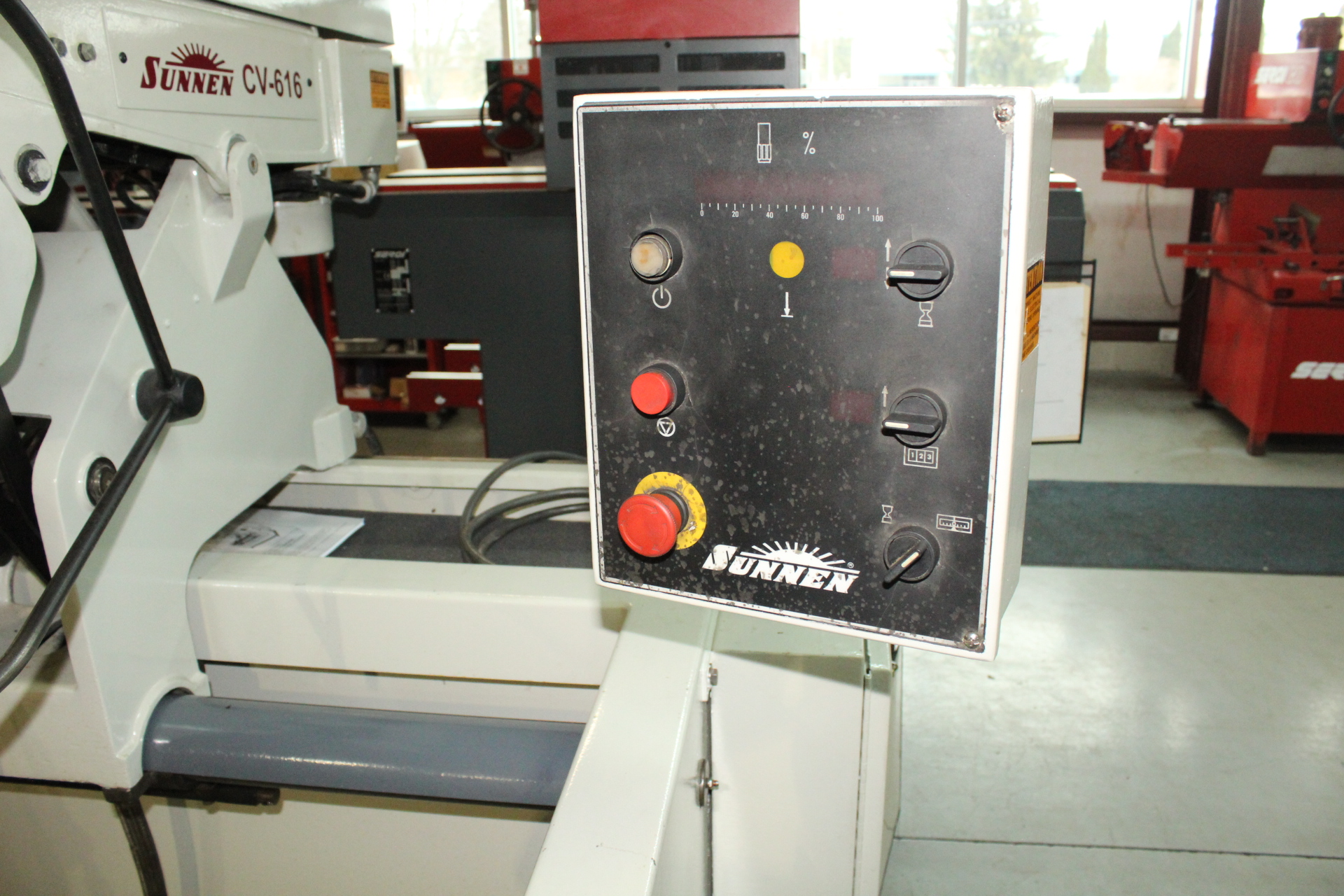

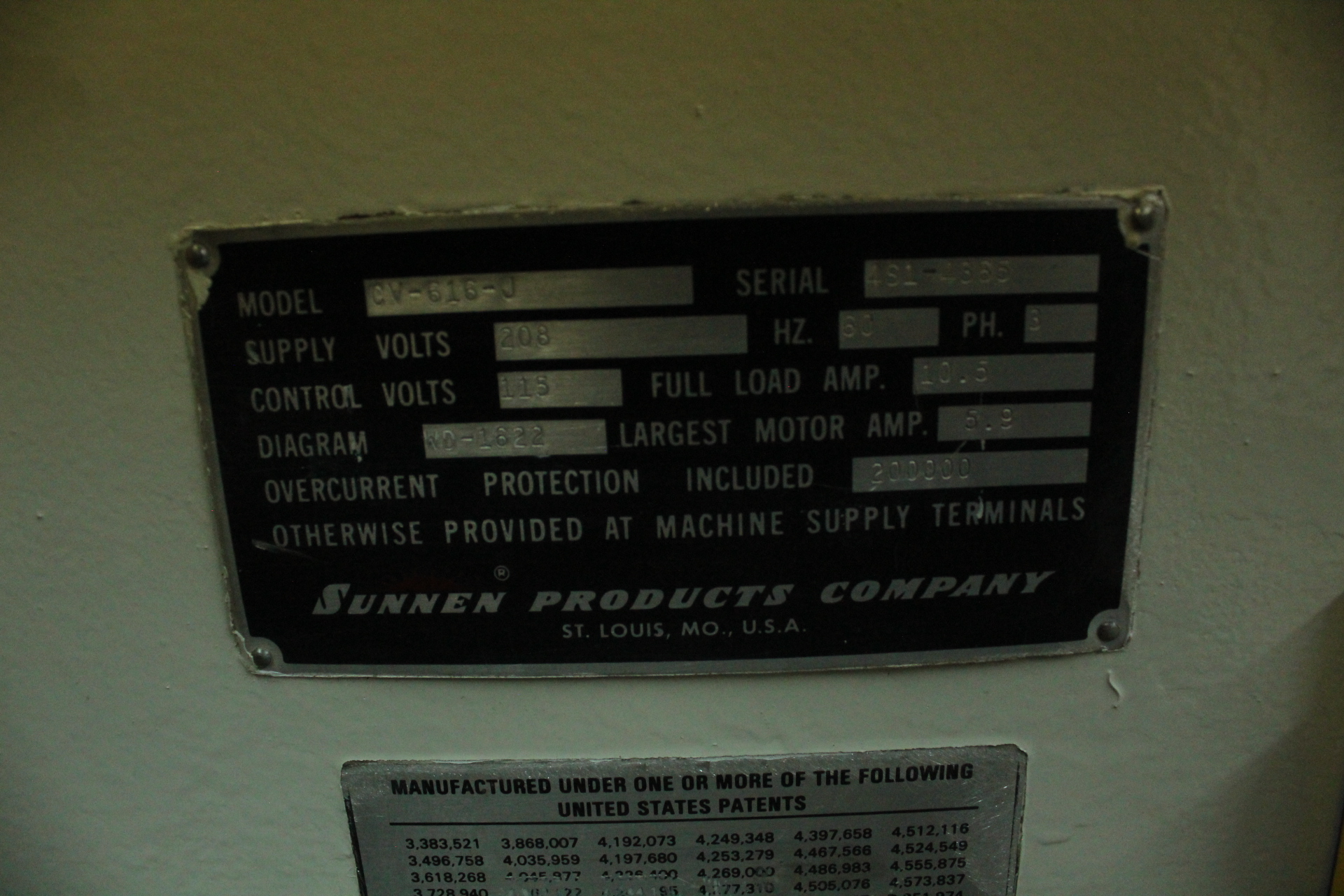

Power Requirements: Main drive motor: 2-HP, 230/460-volt, 3-phase, 60-Hz, totally-enclosed, fan cooled. Heat Exchanger blower motor, ½-HP; honing oil and filter pump motor, 1-HP. All control circuits are 115-volt

Floor Area Required: 72½" width (1842 mm), 89¾" depth (2280 mm), 85½" height (2172 mm)

Machine Weight: 1900 lbs. (861 Kg)

Shipping Weight: 2500 lbs. (1134 Kg)

TOOLING

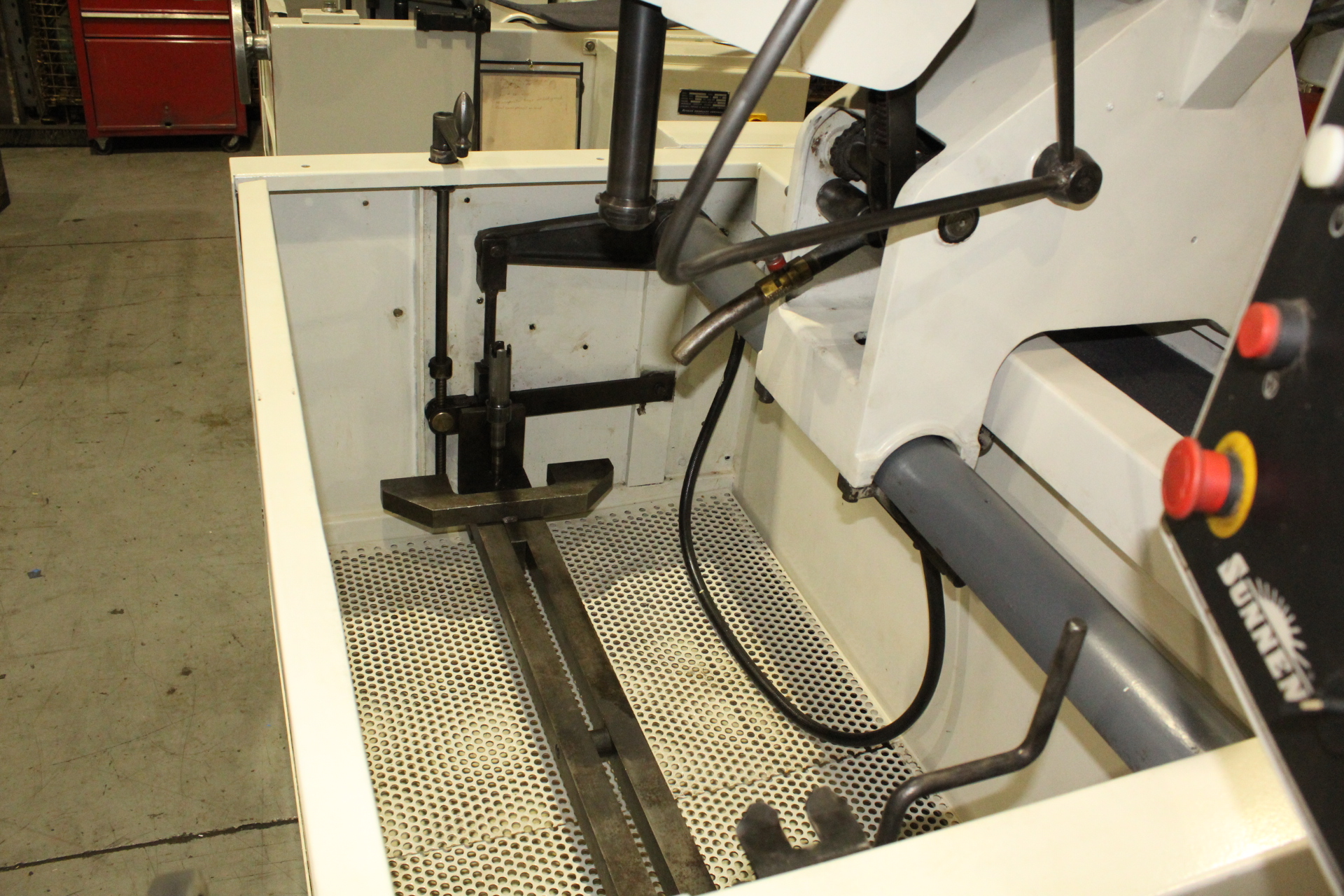

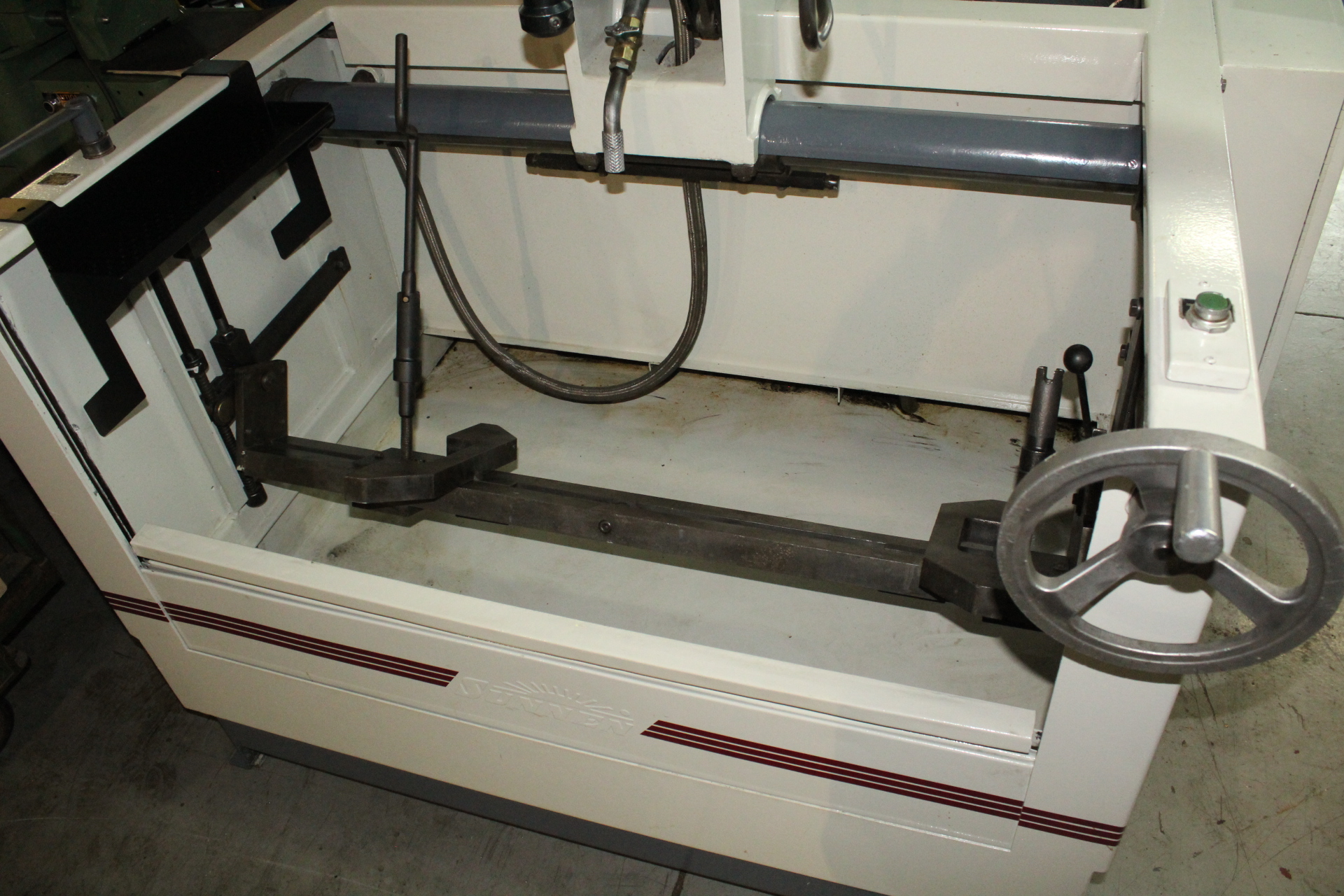

- Sunnen Standard hone head (3"-5") with setting gauge and stone inserter and V-Block Clamping kit. Used condition
