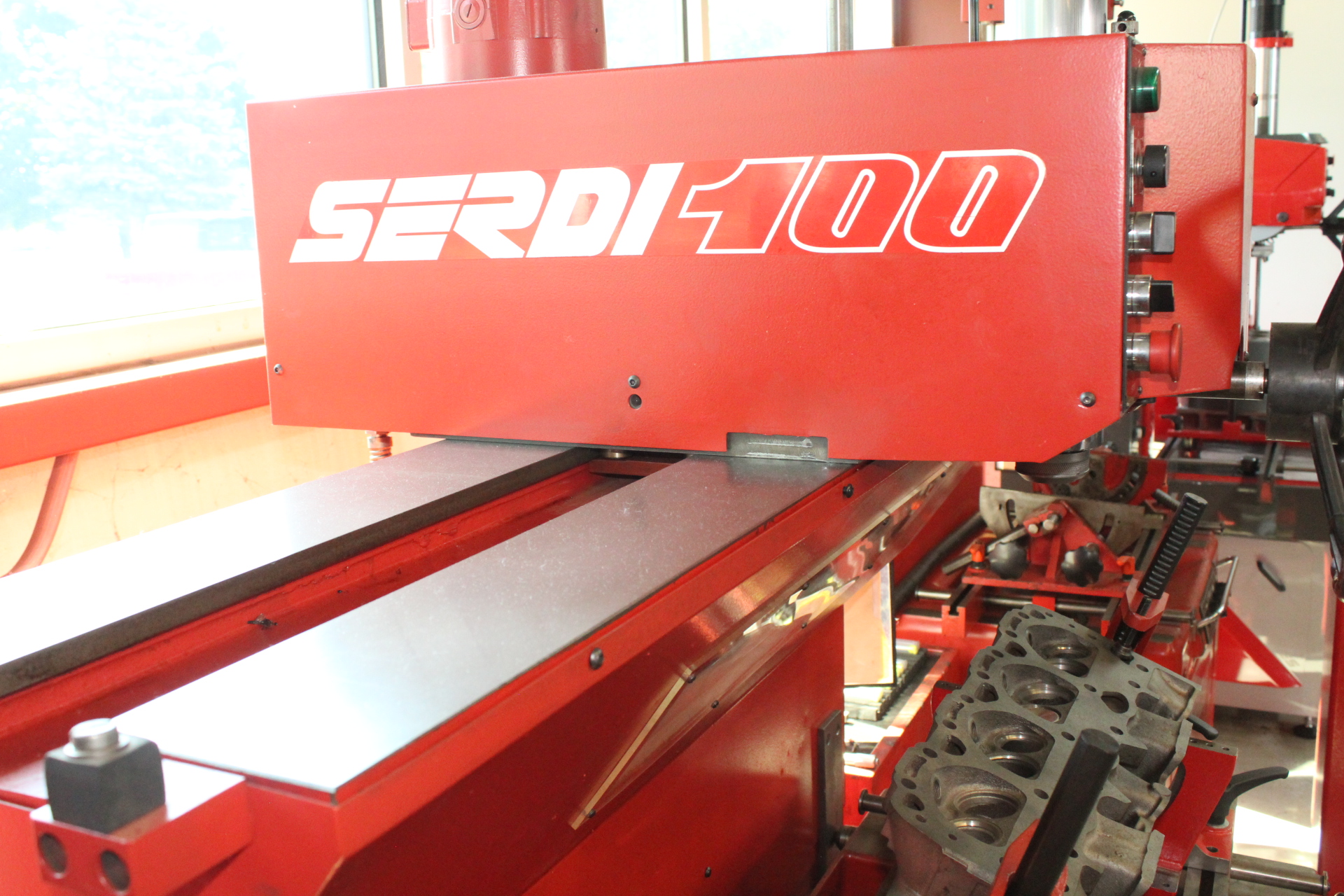

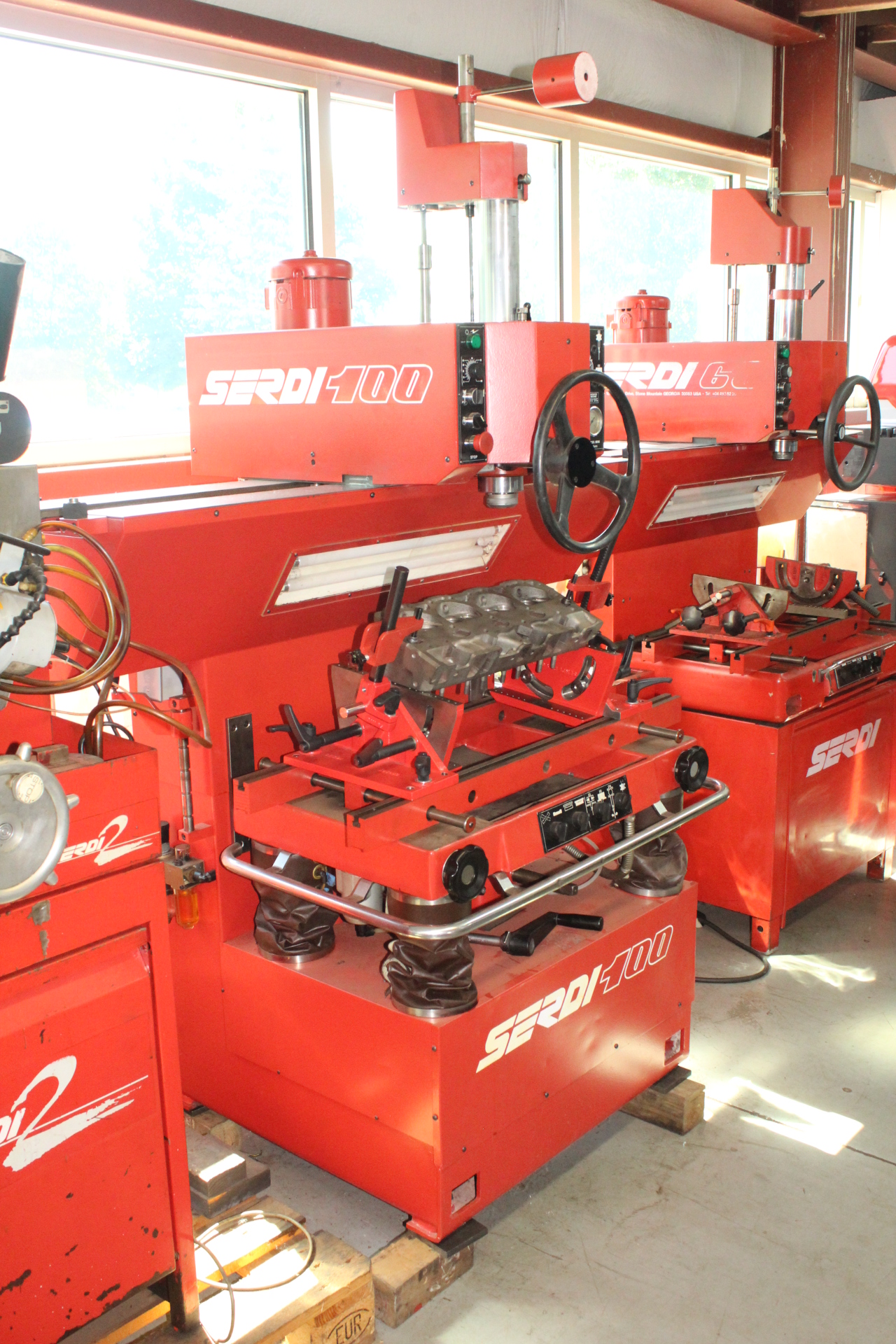

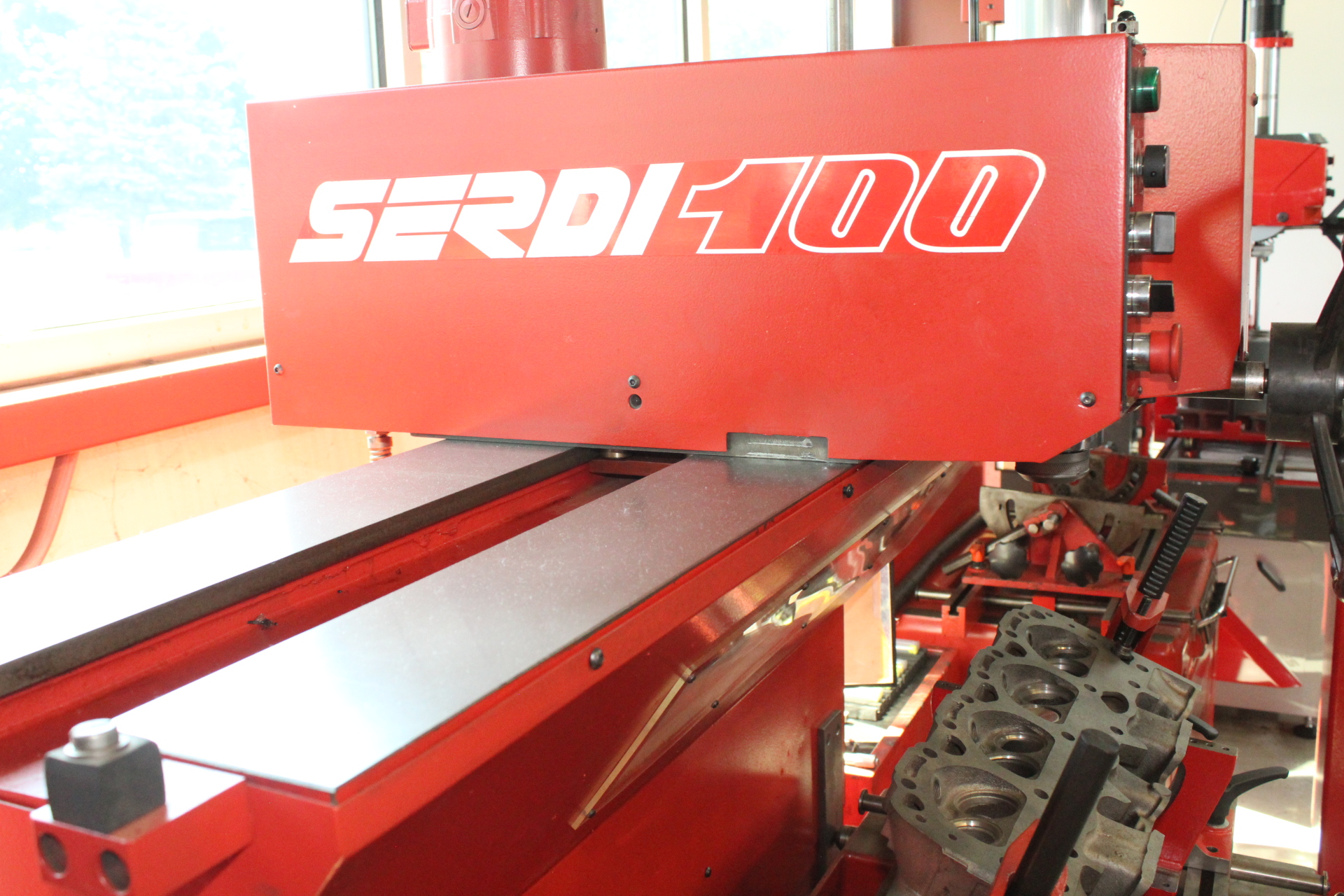

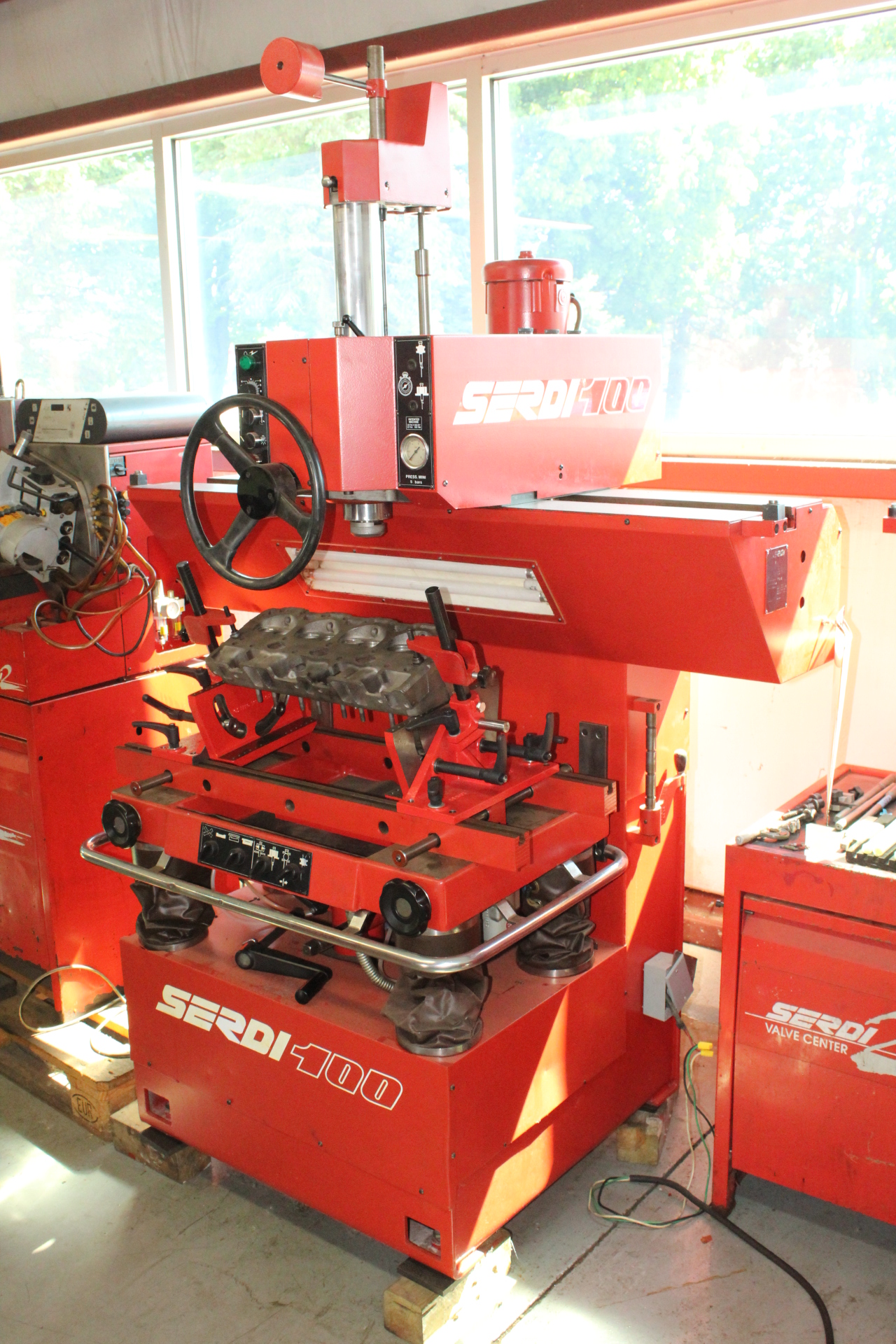

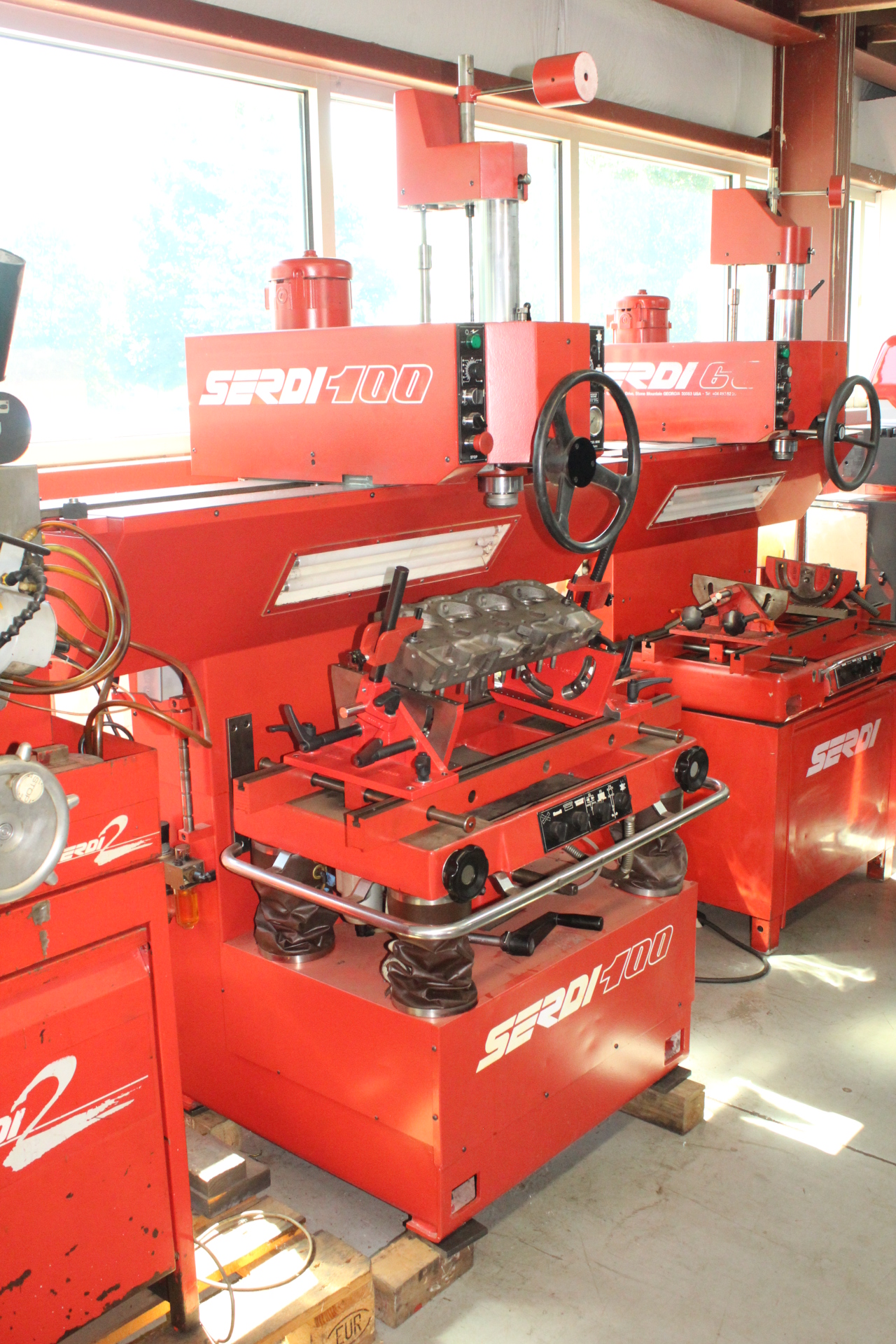

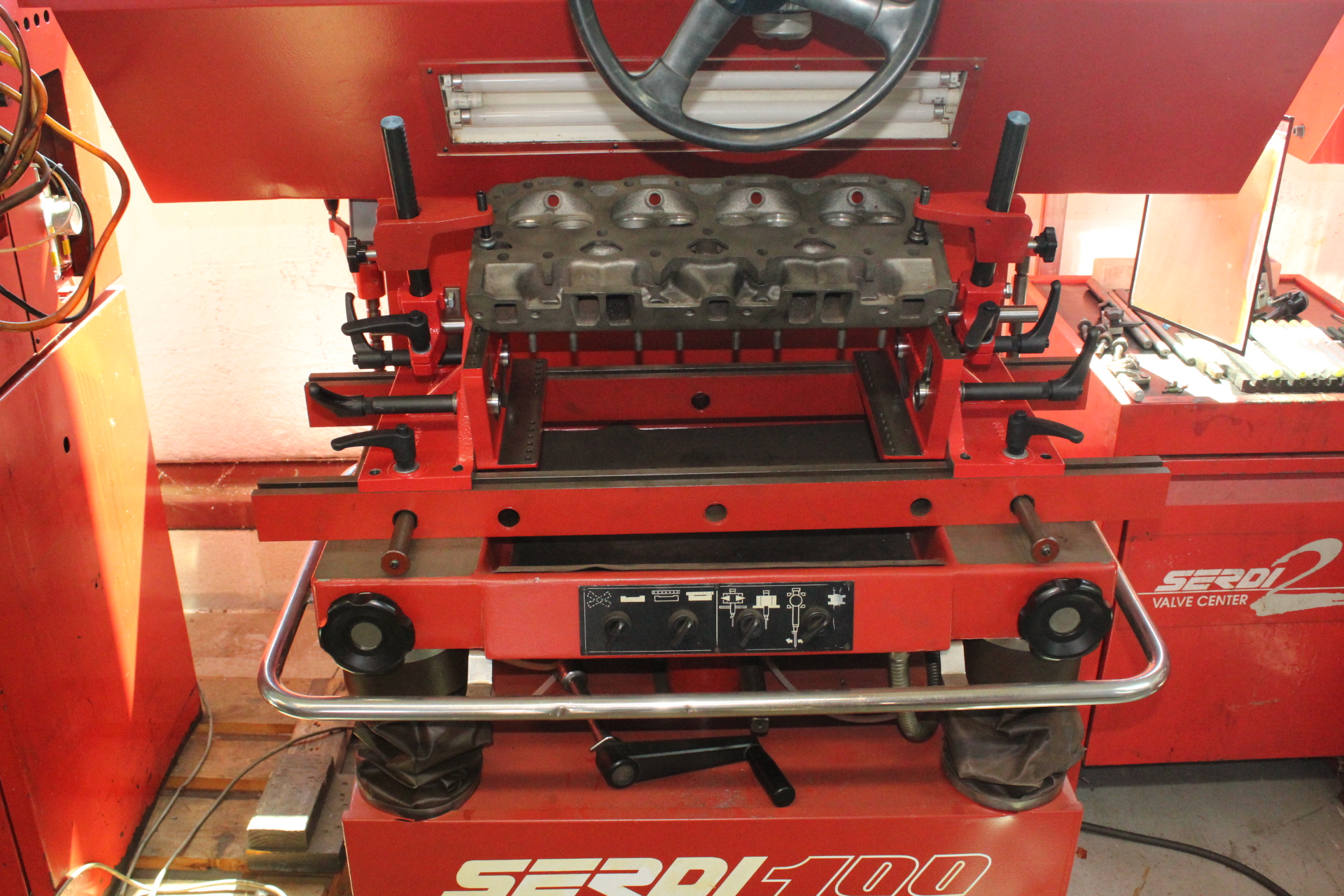

Serdi 100 Valve Guide and Seat Machine

SPECIFICATIONS

Max. Measurements of the Work Piece
    • Length: unlimited
    • Height: 20"
    • Width: 23.5"

Machining Capacity:
    • Seat Diameter: from Ø 0.7" to 4"3/4

Head Movement:
    • Axe X: 40"
    • Axe Y: 2"

Spindle Travel:
    • 7"3/4

Table Inclination Angle:  • 30°

Pneumatic:
    • Air Pressure: 86 Psi
    • Air Volume: 635 cu.ft/h

Spindle Rotation:
    • Min: 50 RPM
    • Max: 700 RPM

Spindle Torque:
    • Constant Torque of 1.5 lb/ft at 100 RPM to 600 RPM

Electrical Power:
    • 2KW

Mains Connection:
    • 220 - 240 V 1PH
    • 50 or 609 Hz

Working Space:
    • Length: 95"
    • Width: 60"

Shipping Weight:
    • 3,135 lbs

Max. Measurements of the Machine:
    • Height: 84"
    • Width: 46"
    • Length: 79"
